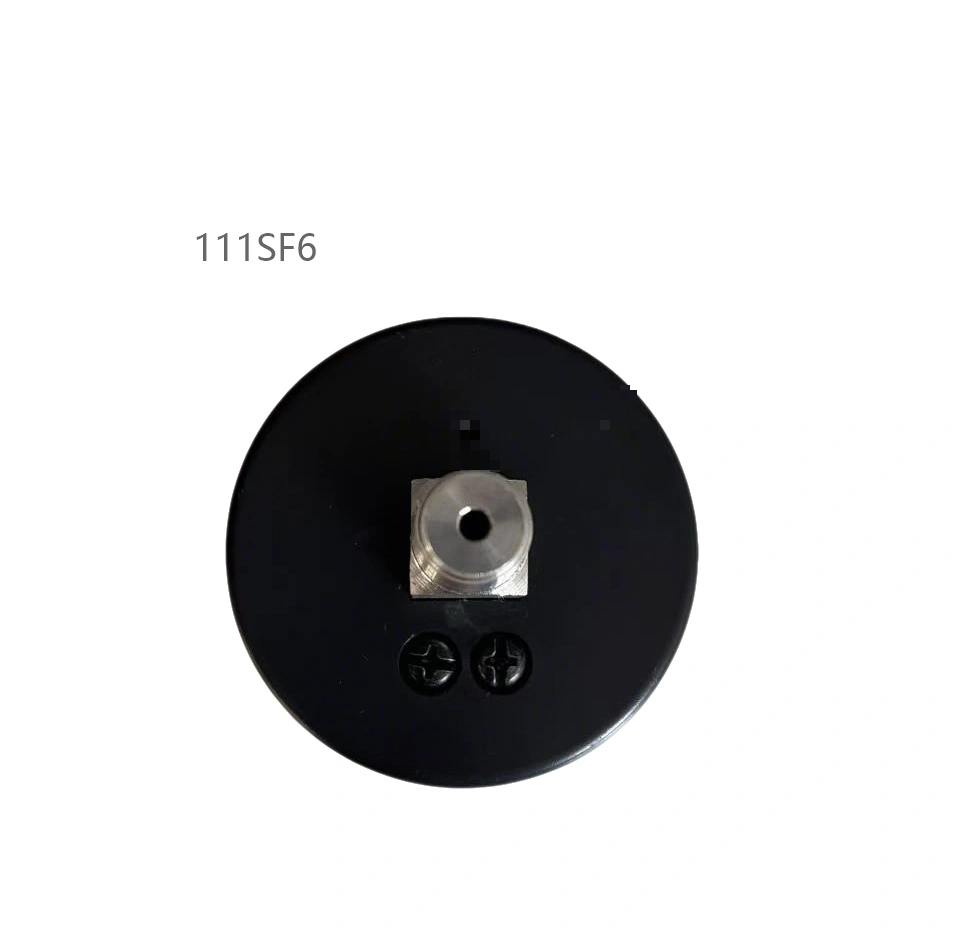

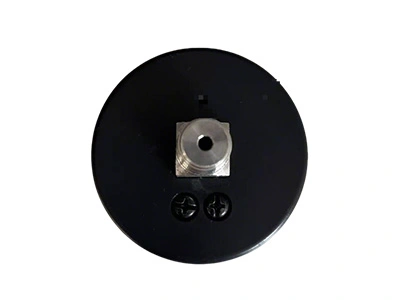

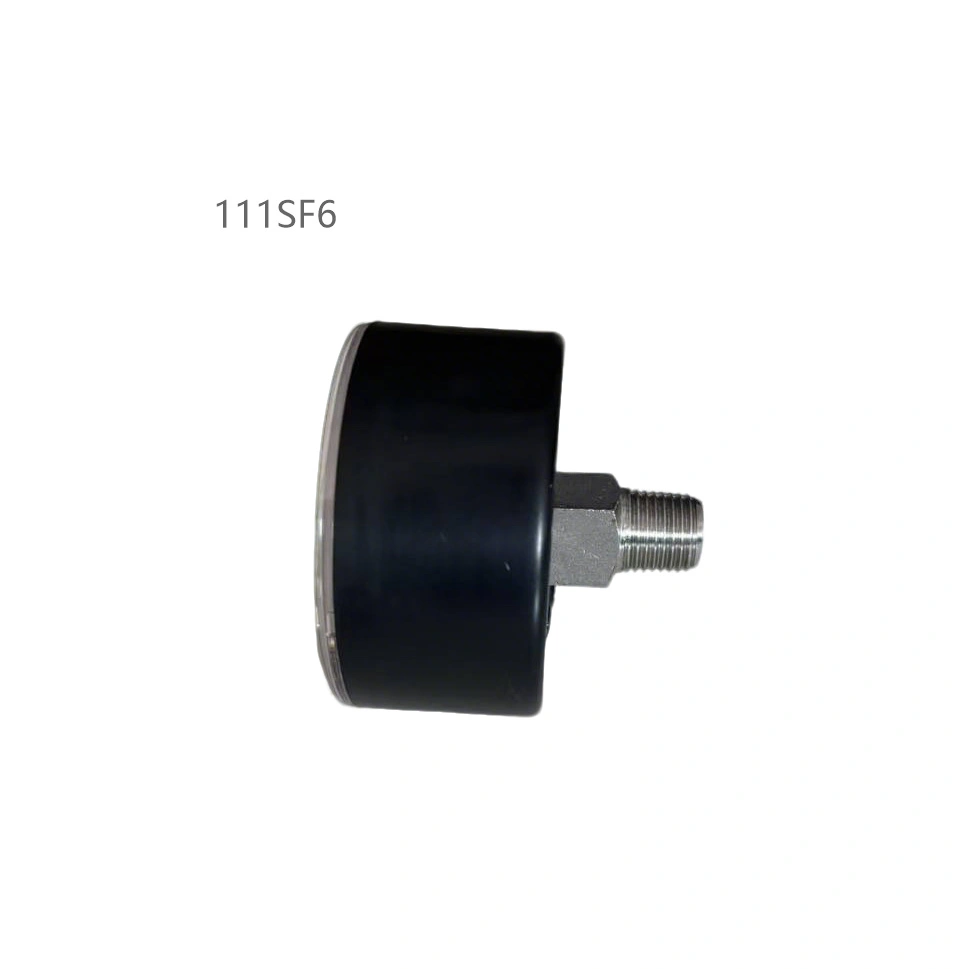

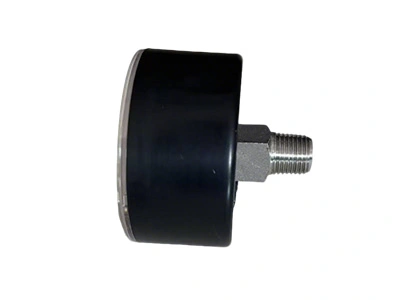

111SF6 Gas Density Monitor
Product Details
- Accuracy class: ±2.5%, ±1.6%
- Nominal dial size: 2.5" (63mm)
- Pressure range: 0–1 bar, 0–2 bar
- Process connection: 1/8", 1/4" BSPT or optional
- Case material: black steel, plastic, or stainless steel
- Bezel: no bezel
- Window material: plastic
- IP protection rating: IP54, IP40
- Mounting: Back mount
Customization
- Logo: custom dial branding & OEM
- Scale: bar / psi, MPa / kg/cm² or kPa / psi
- Pressure range: standard ranges (e.g., 0-1.6 bar) or customized non-standard ranges
- Thread size: 1/8", 1/4", 3/8", 1/2", etc.
- Mounting: bottom mount (radial connection), back mount (axial connection), panel mount (front flange or rear flange)
- Window material: Polycarbonate (PC), tempered glass, acrylic
- Accuracy class: 1.5/1.6/2.5
Applications
SF6 gas density monitor, also called sulfur hexafluoride gas pressure gauge, is mainly used to measure the pressure and density of SF₆ gas in sealed containers.
- Power equipment monitoring: Widely used in SF₆ gas-insulated switchgear (GIS), high-voltage circuit breakers, and gas-insulated cabinets to monitor SF₆ gas density changes inside electrical equipment

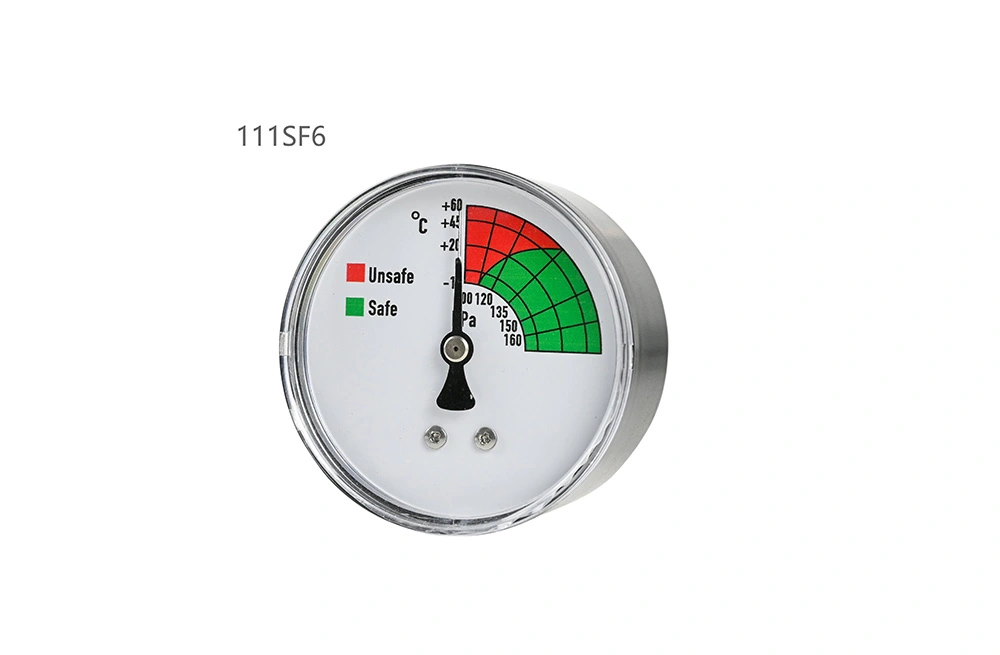

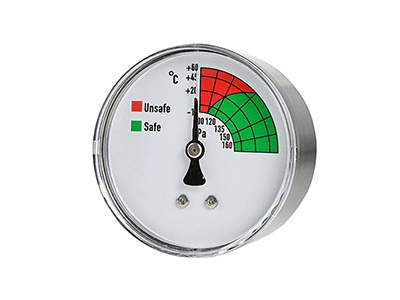

- Safety indication: The dial includes “Safe” (green) and “Unsafe” (red) zones, which visually indicate whether the gas density is within the safe range, helping detect gas leakage in time and ensure insulation and arc-quenching performance of the equipment.
Installation Dimensions
