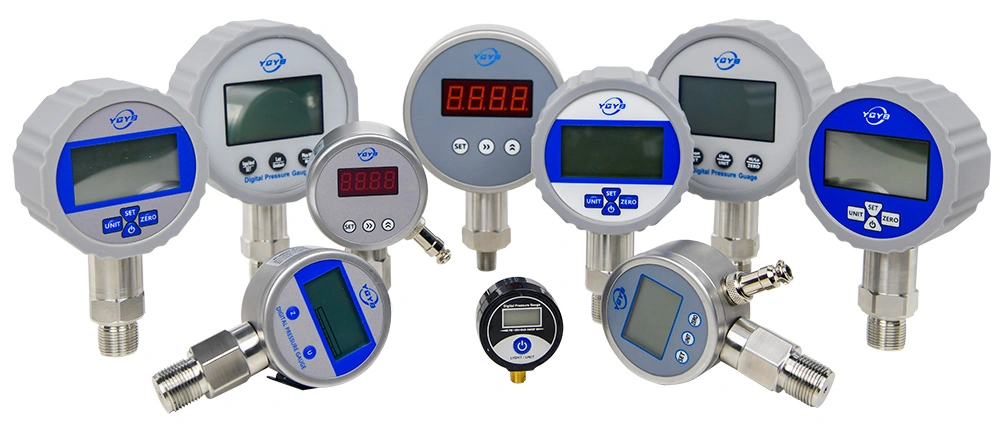

Digital Pressure Gauges
Product Details
- Measured media: Gases, liquids, and gas-liquid mixtures compatible with housing material
- Pressure range: -100 kPa to 100 MPa
- Pressure types: GP / AP / DP / CP (optional)
- Accuracy: 0.2% FS / 0.5% FS / 0.1% FS (80 mm version)
- Display: LCD / LED
- Case material: SUS304 (Ø40 / Ø63 / Ø80 / Ø100 mm)
- Power supply: 3V DC battery (2×AAA) / 3.6V rechargeable / 10–30V DC
- Pressure sensor: oil-filled diffused silicon
- Process connection: SUS304 / SUS316
- Protection rating: IP65
- Protective sleeve: Grey silicone cover
- Operating temperature: -20°C to +60°C
- Storage temperature: -40°C to +80°C
- Humidity: 5–100% RH
- Certification: CE / EMC / EX
Customization
- Logo customization: customer brand marking on housing or display
- Display type: LCD / LED (optional)
- Units: bar, psi, MPa, kg/cm², kPa, Pa, mbar, mmH2O, mmHg, inH2O, inHg, Torr, atm, etc.
- Pressure range: -100 kPa to 100 MPa (customizable)
- Process connection: 1/8", 1/4", 3/8", 1/2" (customizable)
- Mounting: radial (bottom) mount
- Case material: stainless steel for Ø63, Ø80, and Ø100 or ABS for Ø40 (customer-defined)
- Accuracy class: 0.1% FS / 0.2% FS / 0.5% FS / 1.0% FS
Applications
Digital pressure gauges are widely used in industrial automation systems, hydraulic and pneumatic systems, pipelines and pressure vessels, water treatment systems, construction machinery, laboratory calibration, medical equipment, and commercial devices requiring real-time and accurate pressure monitoring.

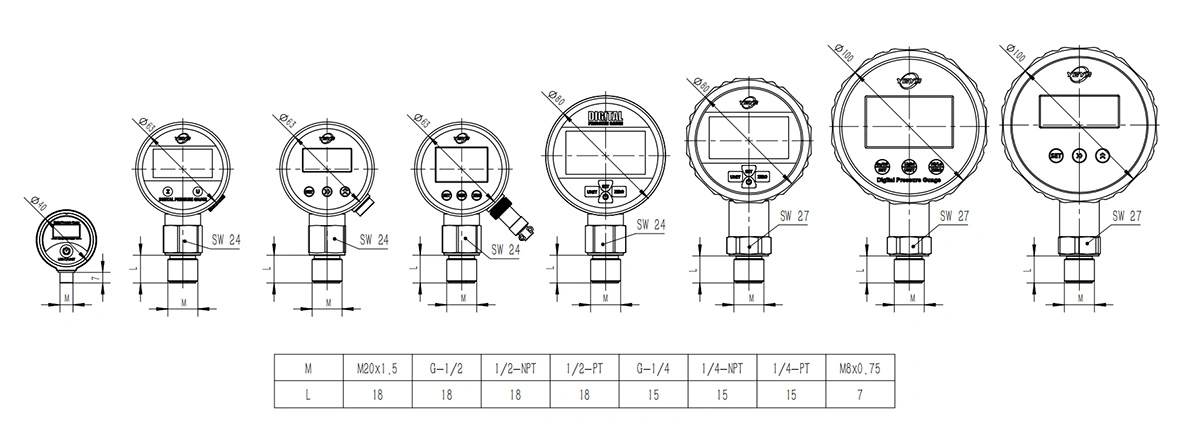

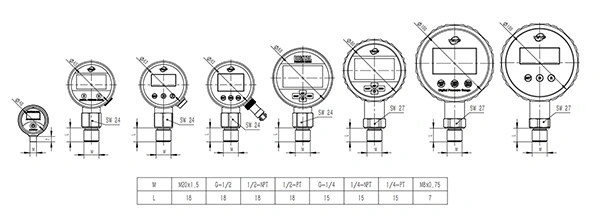

Dimension Drawing
