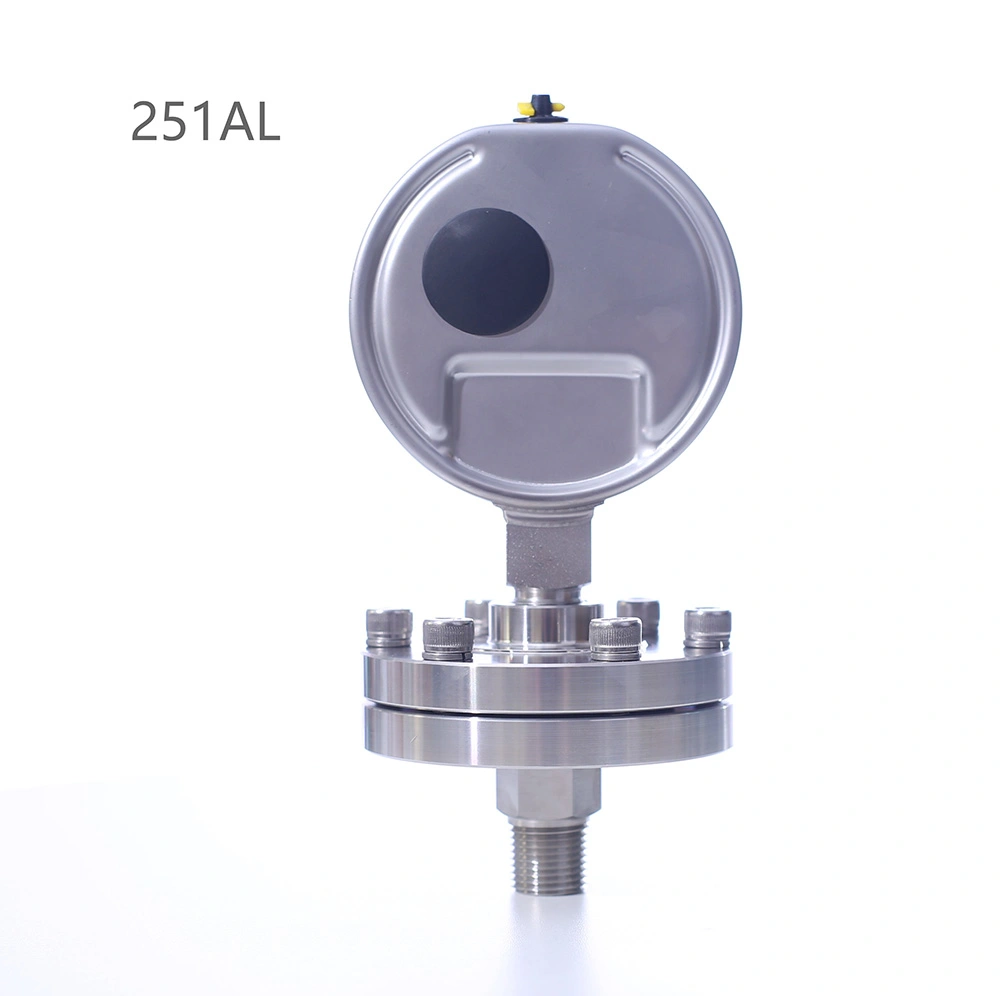

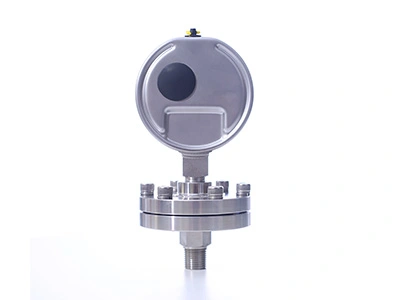

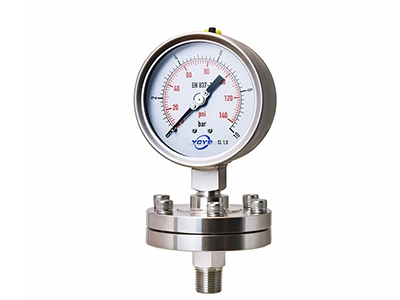

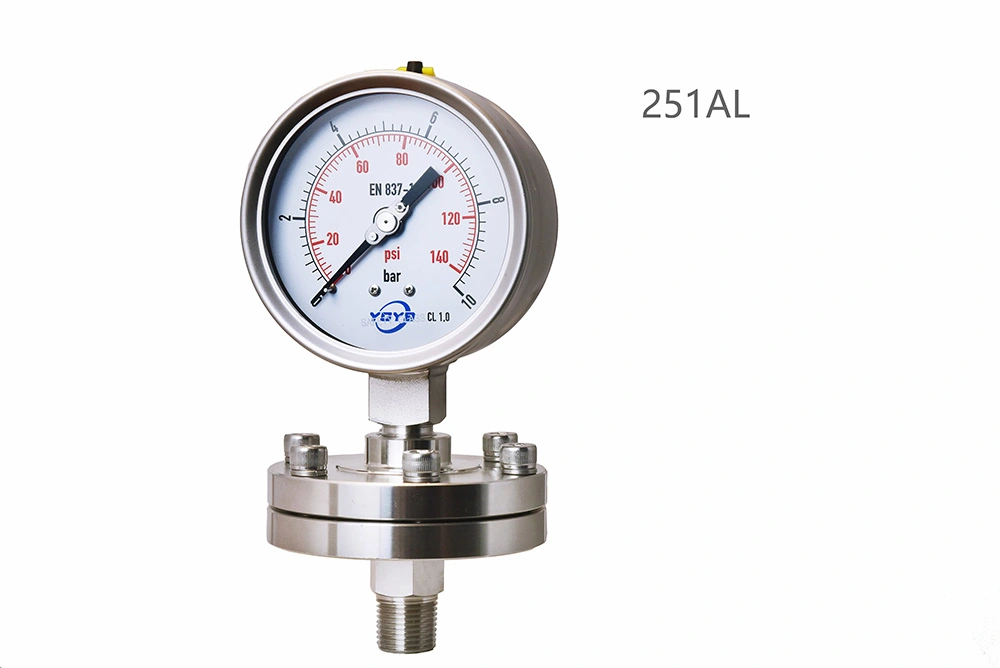

251AL Diaphragm Seal Pressure Gauge
Product Details
- Accuracy class: ±1%, ±1.6%
- Nominal dial size: 2.5" (63mm), 4" (100mm), 6" (150mm)
- Pressure range: Vacuum to 1000 bar, customizable within this range
- Diaphragm seal connection: 3/8", 1/2", BSP, NPT (optional)
- Filling liquid: Glycerine, silicone, or no oil (dry)
- Case material: matted or polished stainless steel
- Bezel: bayonet type
- Window material: tempered glass or safety glass
- IP protection rating: IP65
- Mounting: lower mount / back mount
Customization
- Logo: custom dial branding & OEM
- Scale: bar / psi, MPa / kg/cm² or kPa / psi
- Pressure range: standard ranges (e.g., 0-1.6 bar) or customized non-standard ranges
- Thread size: 1/8", 1/4", 3/8", 1/2", etc.
- Mounting: bottom mount (radial connection), back mount (axial connection), panel mount (front flange or rear flange)
- Window material: Polycarbonate (PC), tempered glass, acrylic
- Accuracy class: 1.5/1.6/2.5
Applications
Diaphragm seal pressure gauges are used to measure pressure in corrosive, high-viscosity, crystallizing, or particle-containing media. The diaphragm seal protects the internal sensing element from direct contact with the process fluid, ensuring stable and reliable measurement in harsh industrial conditions.
Installation Dimensions
