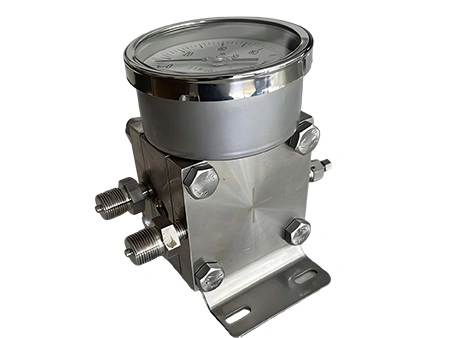

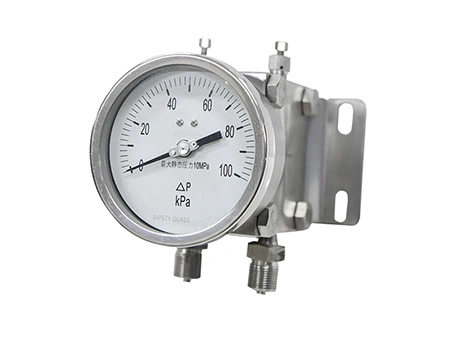

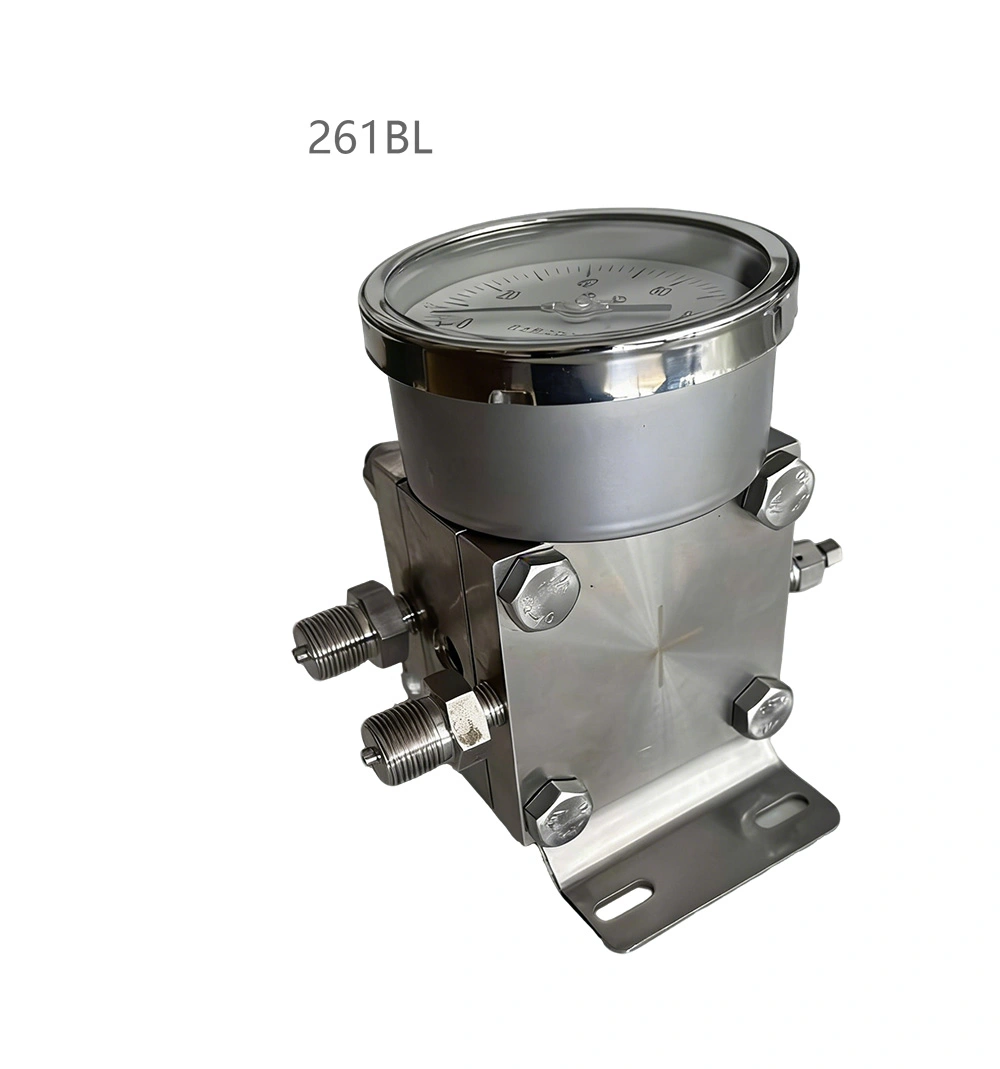

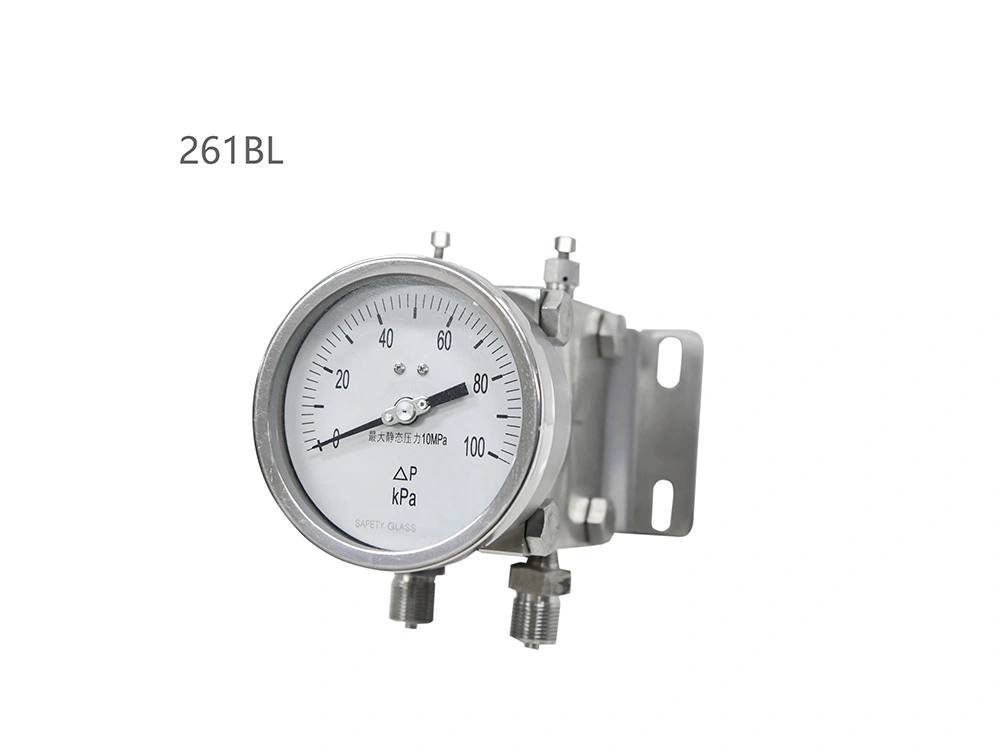

261B Double Diaphragm Differential Pressure Gauge
Product Details
- Nominal dial size: 100mm, 150mm
- Case material: 304 or 316 stainless steel
- Process connection: stainless steel
- Diaphragm material: 316L stainless steel
- Movement: 304 stainless steel
- Dial material: aluminum with custom scale and logo
- Pointer: aluminum, black, micro adjustable
- Window material: laminated safety glass
- IP protection rating: IP54
- Operating temperature: -20°C to +60°C
- Pressure range: 0–16 kPa to 25 bar
- Connection: M20×1.5, 1/2" G, 1/2" NPT, or customized
Customization
- Logo: custom dial branding & OEM
- Scale: bar / psi, MPa / kg/cm² or kPa / psi
- Pressure range: standard ranges (e.g., 0-1.6 bar) or customized non-standard ranges
- Thread size: 1/8", 1/4", 3/8", 1/2", etc.
- Mounting: bottom mount (radial connection), back mount (axial connection), panel mount (front flange or rear flange)
- Window material: Polycarbonate (PC), tempered glass, acrylic
- Accuracy class: 1.5/1.6/2.5
Applications
Suitable for high static pressure differential measurement systems. It is commonly used in hydraulic systems to monitor pressure difference between pump inlet and outlet in order to detect leakage or blockage in the oil circuit. Its stainless steel construction also makes it suitable for humid environments and industrial applications with chemical corrosion risk.
Installation Dimensions
