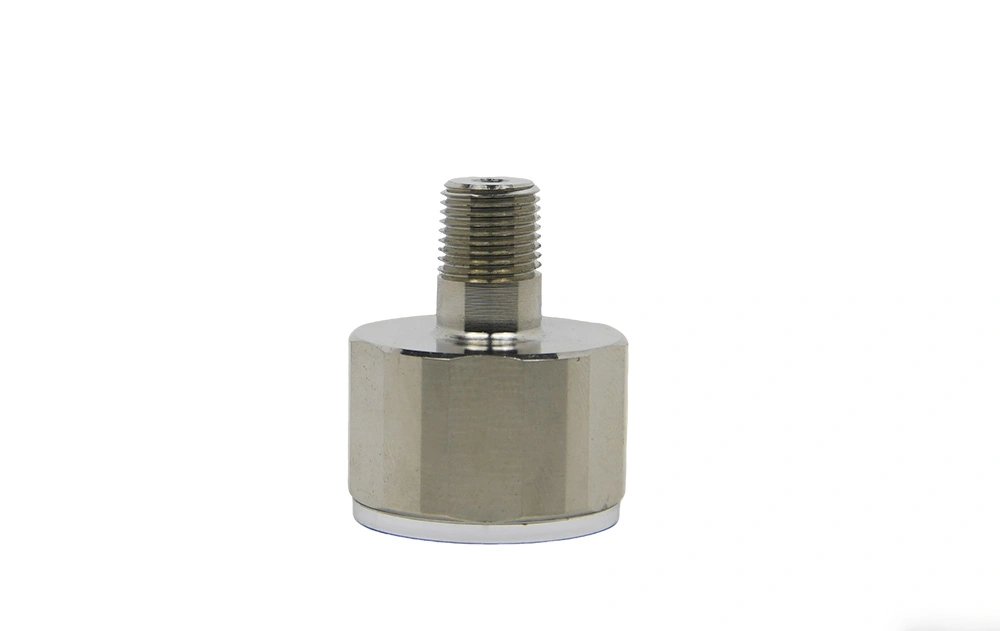

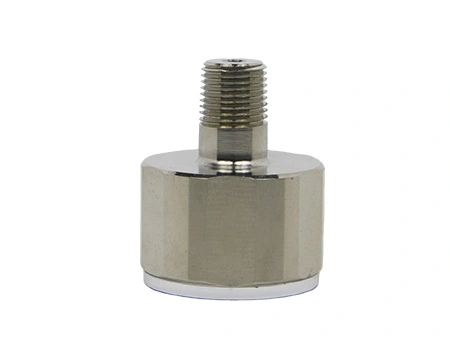

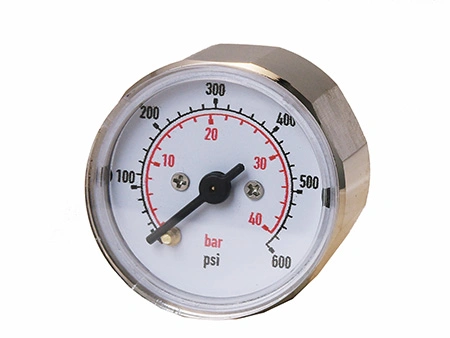

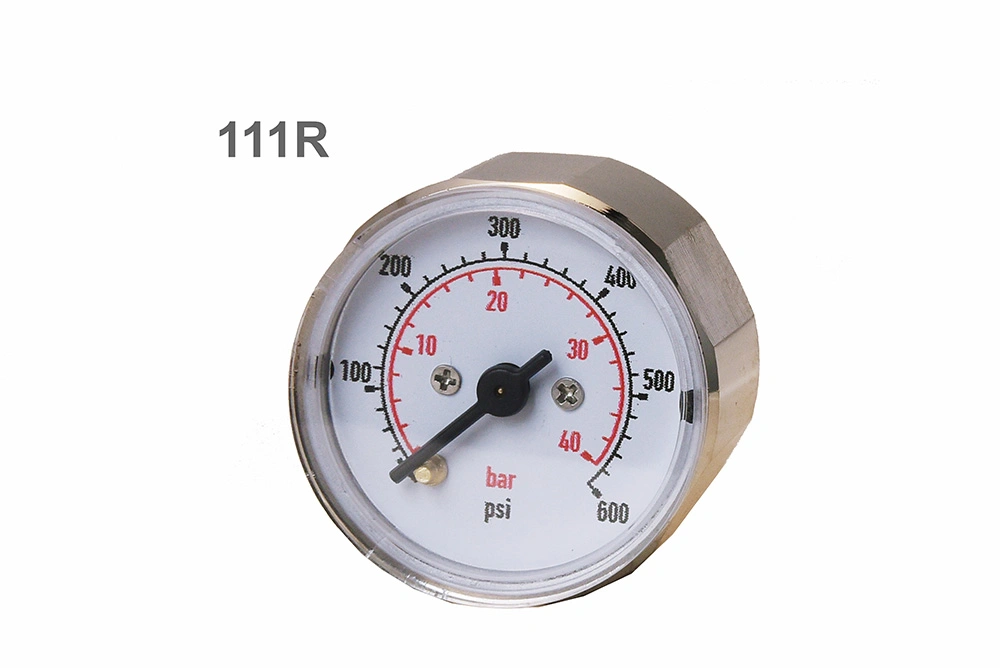

111R General Purpose Pressure Gauge (1")
Product Details
- Accuracy class: ±3%
- Nominal dial size: 1" (27mm)
- Pressure range: 4–20 bar
- Process connection: 1/8" NPT (optional)
- Case material: Brass, chrome-plated or nickel-plated
- Bezel: No bezel
- Window material: Plastic
- IP protection rating: IP54
- Mounting: Back mount
Customization
- Logo printing on dial face
- Scale units: bar/psi, MPa/kg/cm², kPa/psi
- Pressure range customization (e.g. 0–1.6 bar or non-standard ranges)
- Thread options: 1/8", 1/4", 3/8", 1/2", etc.
- Mounting: bottom mount (radial connection), back mount (axial connection), panel mount (front flange or rear flange)Case material: black steel, chrome-plated steel, stainless steel, or plastic
- Window material: glass, tempered glass, polycarbonate (PC), acrylic
- Accuracy class options: 1.0 / 1.5 / 1.6 / 2.5
Applications
Suitable for hydraulic systems in small industrial equipment, water heating and plumbing systems, pneumatic systems, and pump and valve components in compact installations.
Installation Dimensions
