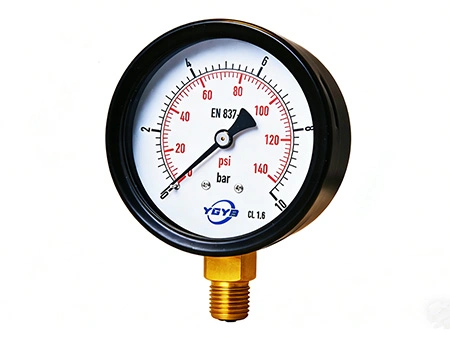

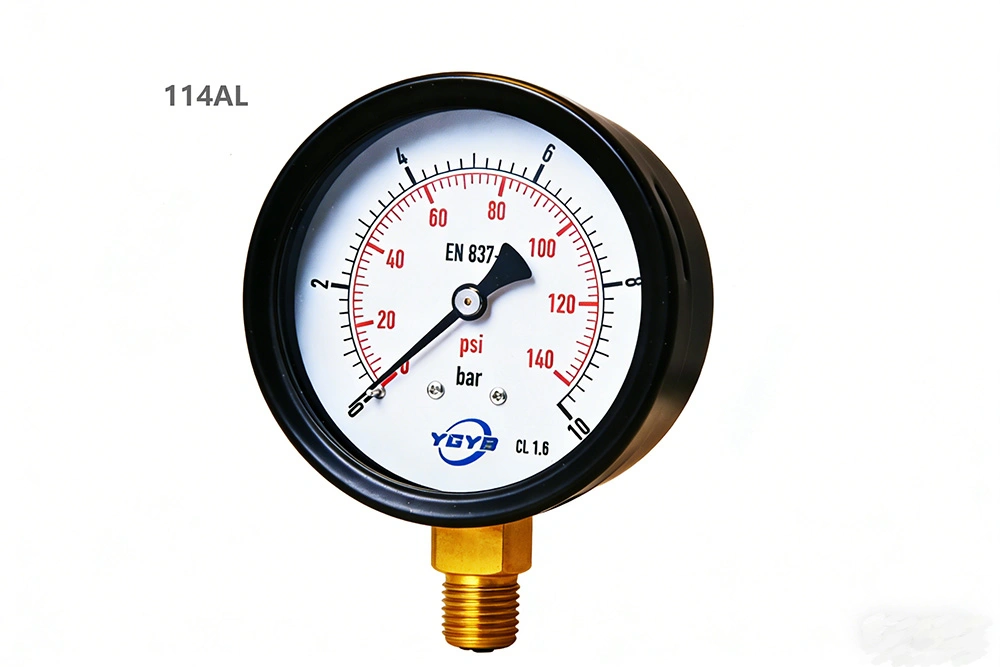

114A Bourdon Tube Pressure Gauge (4" /6")
- Accuracy class: ±1%
- Nominal dial size: 4" (100mm), 6" (160mm)
- Pressure range: Vacuum to 400 bar (6000 psi), customizable within this range
- Process connection: 1/8", 1/4", 3/8", 1/2", NPT, BSP, BSPT, M12×1.5, M20×1.5 (optional)
- Case material: Black steel
- Bezel material: Black steel
- Window material: Glass
- IP protection rating: IP54
- Mounting: Bottom mount / back mount
Customization
- Logo printing on dial face
- Scale units: bar/psi, MPa/kg/cm², kPa/psi
- Pressure range customization (e.g. 0–1.6 bar or non-standard ranges)
- Thread options: 1/8", 1/4", 3/8", 1/2", etc.
- Mounting: bottom mount (radial connection), back mount (axial connection), panel mount (front flange or rear flange)Case material: black steel, chrome-plated steel, stainless steel, or plastic
- Window material: glass, tempered glass, polycarbonate (PC), acrylic
- Accuracy class options: 1.0 / 1.5 / 1.6 / 2.5
Applications
- Pneumatic systems and air compressors: small compressors, air supply pipelines, pneumatic tools
- Water supply and drainage systems: building water supply, pump station outlet, filter pressure monitoring
- Laboratory and testing equipment: general measurement and teaching or testing use
- HVAC systems: pressure indication in heating and cooling water circuits
Installation Dimensions
