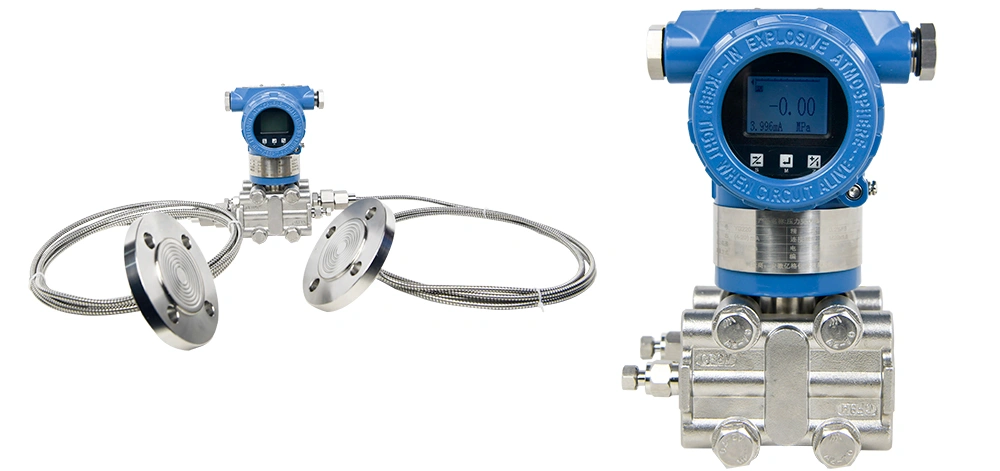

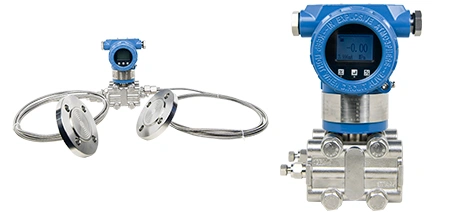

Smart Differential Pressure Transmitter

The smart differential pressure transmitter adopts advanced single-crystal silicon sensing technology with a built-in anti-interference amplification circuit. It features low temperature drift, high accuracy, stable performance, and strong EMC capability. The transmitter features a sealed 3051 housing, supports multiple output signals, includes reverse polarity protection, and is certified for explosion-proof applications. It provides reliable long-term operation and is widely used in industrial automation, food processing, and chemical applications.

Inquiry
Technical Specifications
  • Measuring medium: gases, liquids, and gas-liquid mixtures compatible with wetted parts
  • Pressure range: -100 kPa to 10 MPa (see Table 2)
  • Pressure type: DP
  • Accuracy: 0.075% FS / 0.1% FS / 0.2% FS / 0.5% FS (optional)
  • Display: LCD
  • Housing material: 3051 ADC12
  • Power supply: 10–30 VDC
  • Output signal: 4–20 mA / RS485 / HART / 0–5 V / 0–10 V / 0.5–4.5 V (optional)
  • Pressure sensor: single-crystal silicon
  • Protection grade: IP67
  • Certification: CE / EMC / Ex db IIC T6 Gb
  • Operating conditions:
    Operating temperature: -20°C to +60°C
    Storage temperature: -40°C to +80°C
    Humidity: 5–100% RH
