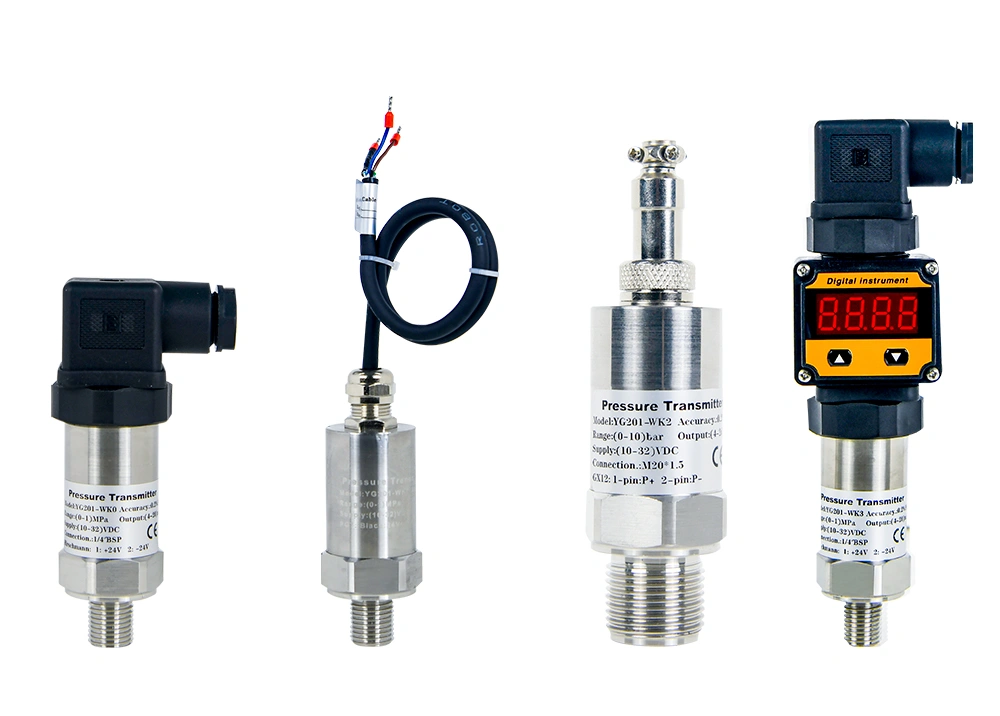

Compact Pressure Transmitter
Compact pressure transmitters convert pressure into standard electrical signals for real-time monitoring, automatic control, and system protection. They are widely used in industrial manufacturing, petrochemical processing, water treatment, energy and power, transportation, and the food and pharmaceutical industries. Compared with the YG201-T general pressure transmitter, this series features a more compact design with a shorter overall length.

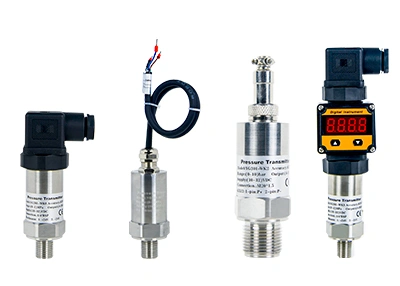

Compact Pressure Transmitter
The compact pressure transmitter adopts advanced piezoresistive sensing technology with a built-in anti-interference amplification circuit. It features low temperature drift, high accuracy, stable performance, and strong EMC capability. The transmitter is built with a sealed stainless steel construction, supports multiple output signals, and includes reverse polarity protection. It provides reliable long-term operation and is widely used in industrial automation, constant pressure water supply systems, pump and valve control, hydraulic systems, construction machinery, agricultural machinery, steel production, and energy applications.
- Measuring medium: gases, liquids, and gas-liquid mixtures compatible with wetted parts
- Pressure range: -100 kPa to 100 MPa (see Table 1)
- Pressure type: GP / AP (optional)
- Accuracy: 0.1% FS / 0.2% FS / 0.5% FS (optional)
- Display: none / LCD / LED (optional)
- Housing material: SUS304
- Power supply: 10–30 VDC
- Output signal: 4–20 mA / RS485 / HART / 0–5 V / 0–10 V / 0.5–4.5 V (optional)
- Protection grade: IP65
- Certification: CE / EMC
- Operating conditions:
Operating temperature: -20°C to +60°C
Storage temperature: -40°C to +80°C
Humidity: 5–100% RH
- Logo customization: Customer brand logo printing available

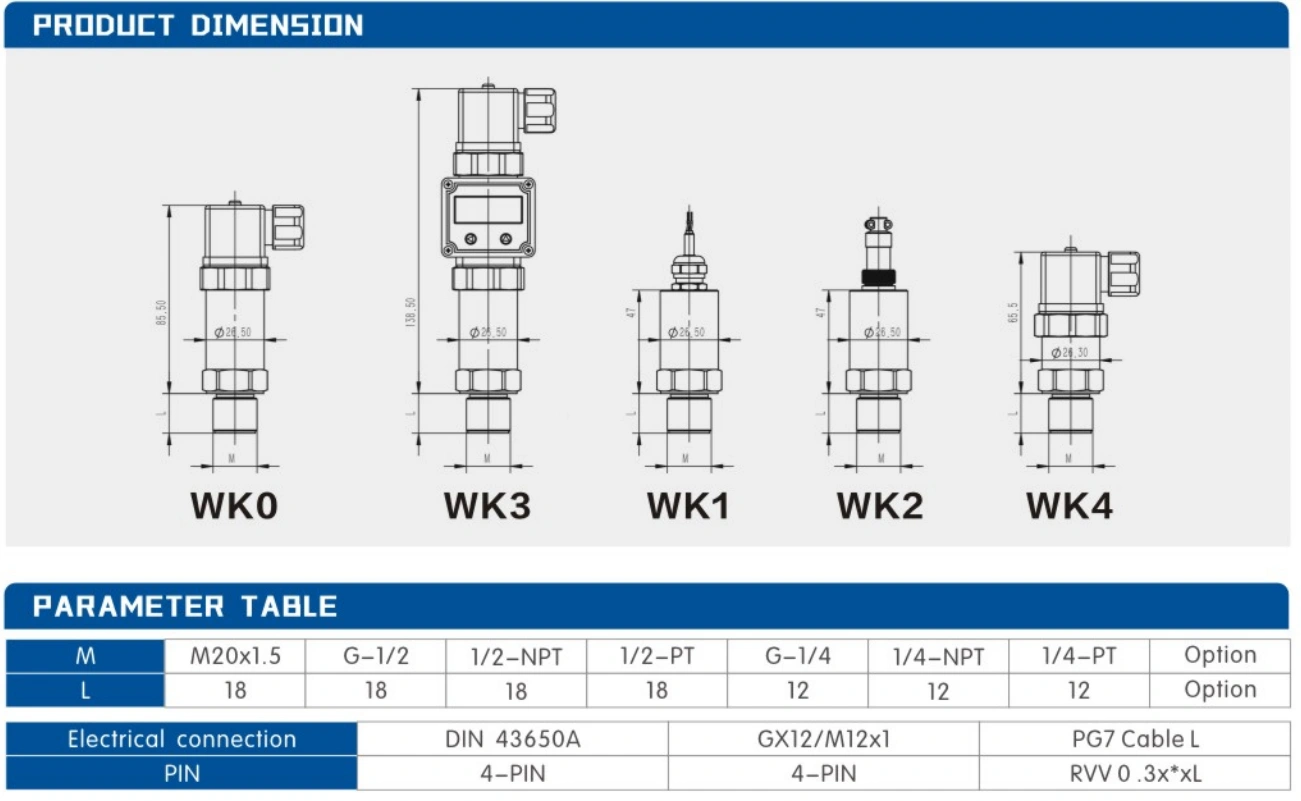

- Display: none / LCD / LED
- Pressure types: absolute pressure (AP), differential pressure (DP), gauge pressure (GP), compound pressure (CP)
- Output signal: no output, 4–20mA, 4–20mA + HART, RS485, 4–20mA + RS485, 0–5V, 0–10V
- Case material: 2088 housing, 3051 aluminum alloy, full stainless steel, rod-type stainless steel
- Process connection: 1/8", 1/4", 3/8", 1/2" optional
- Electrical connection: Hirschmann DIN 43650, M12 aviation plug, PG connector, cable outlet
- Accuracy class: 0.1% FS / 0.2% FS / 0.5% FS / 1.0% FS
- Power supply: 10–30V DC
- Pressure range: -100 kPa to 100 MPa (customizable)
