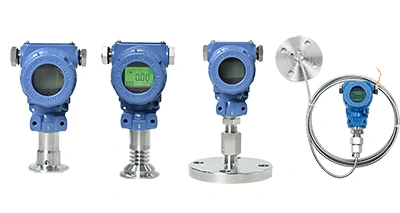

Diaphragm Seal Pressure Transmitter

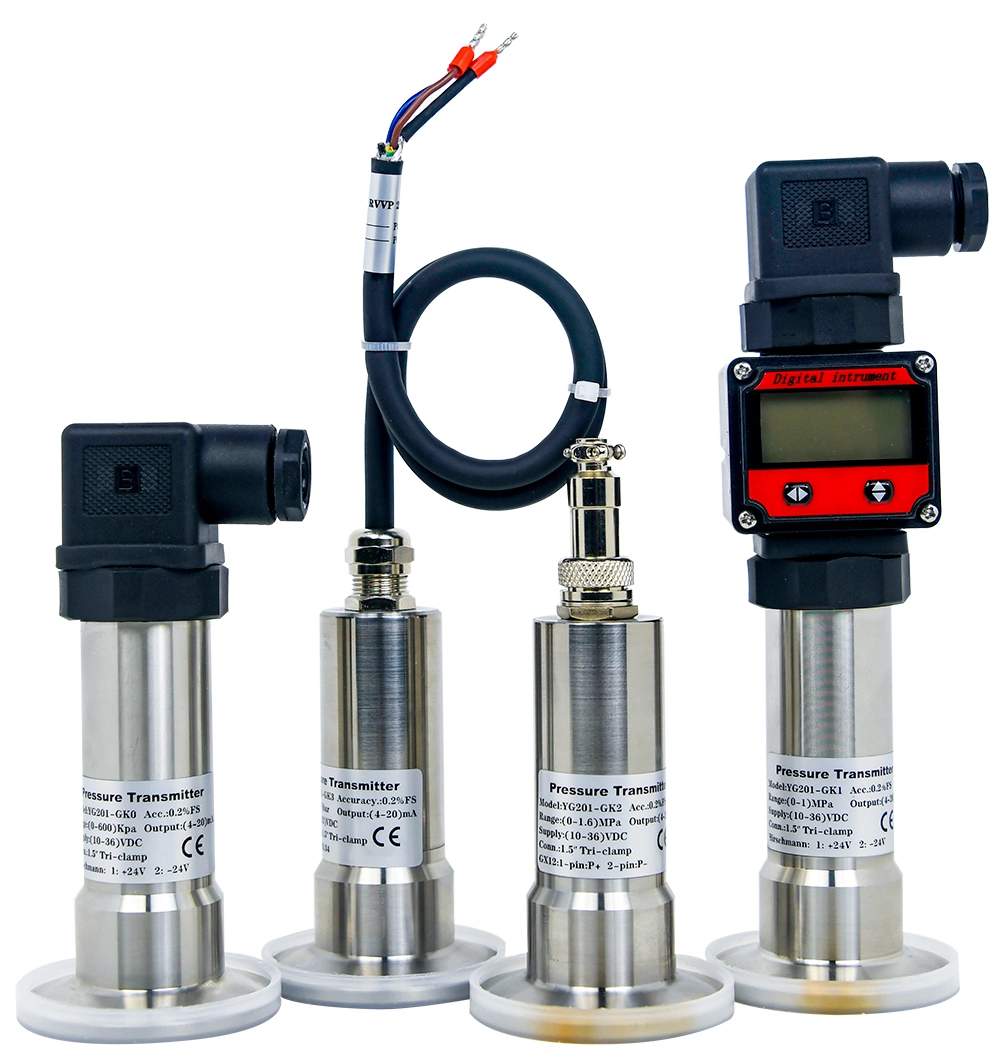

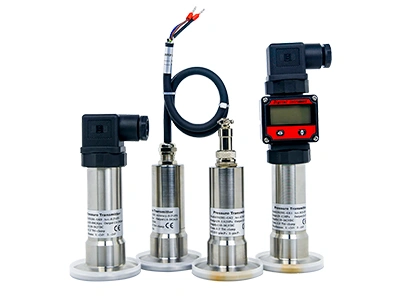

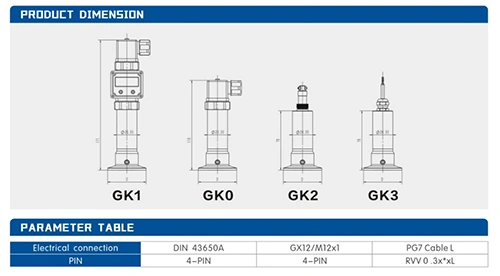

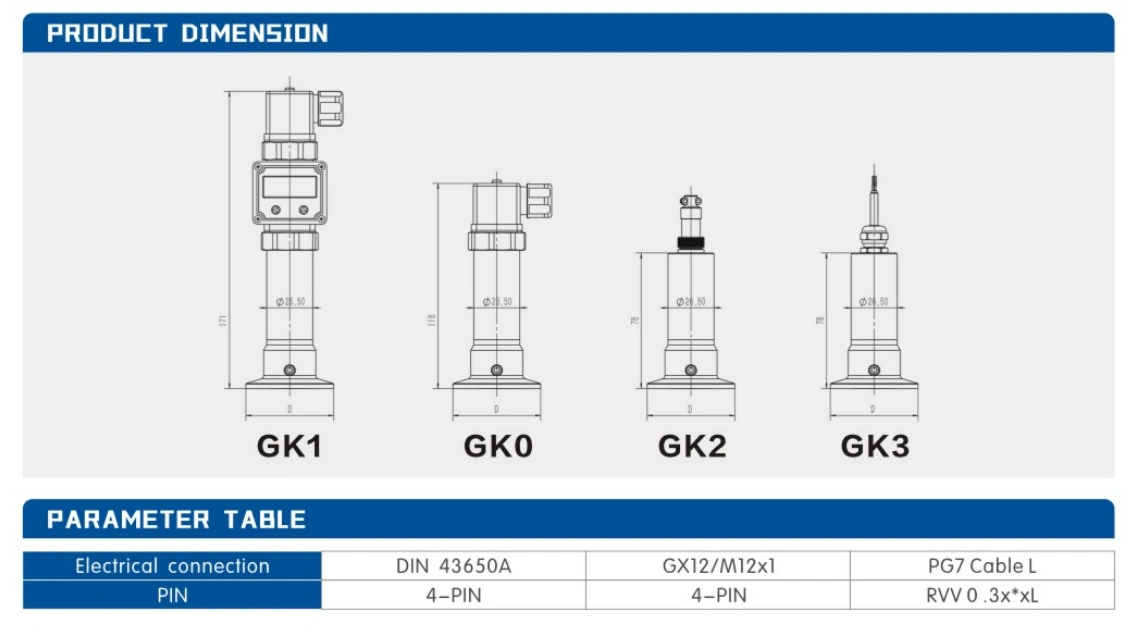

Diaphragm Seal Pressure Transmitter
The diaphragm seal pressure transmitter adopts advanced diffused silicon piezoresistive sensor technology with a built-in anti-interference amplification circuit. It features low temperature drift, high accuracy, stable performance, and strong EMC capability. The transmitter uses a stainless steel sealed structure, supports multiple output signals, and includes reverse polarity protection. It provides reliable long-term operation and is widely used in industrial automation, food processing, and chemical applications.
- Measuring medium: gases, liquids, and gas-liquid mixtures compatible with wetted parts
- Pressure range: -100 kPa to 100 MPa (see Table 1)
- Pressure type: GP / AP (optional)
- Accuracy: 0.1% FS / 0.2% FS / 0.5% FS (optional)
- Display: none / LCD / LED (optional)
- Housing material: SUS304 / SUS316
- Power supply: 10–30 VDC
- Output signal: 4–20 mA / RS485 / HART / 0–5 V / 0–10 V / 0.5–4.5 V (optional)
- Protection grade: IP65
- Certification: CE / EMC
- Operating conditions:
Operating temperature: -20°C to +60°C
Storage temperature: -40°C to +80°C
Humidity: 5–100% RH

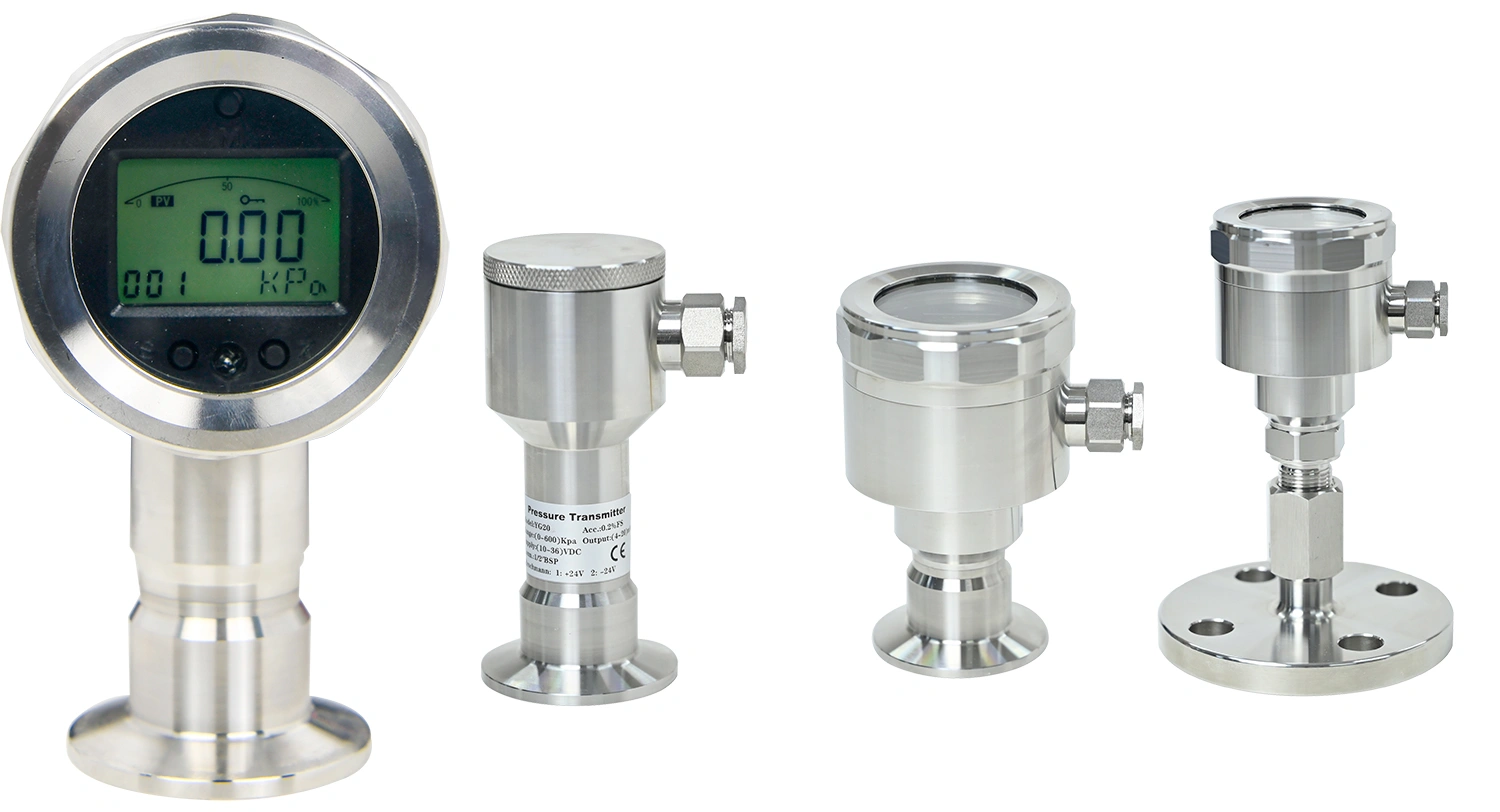

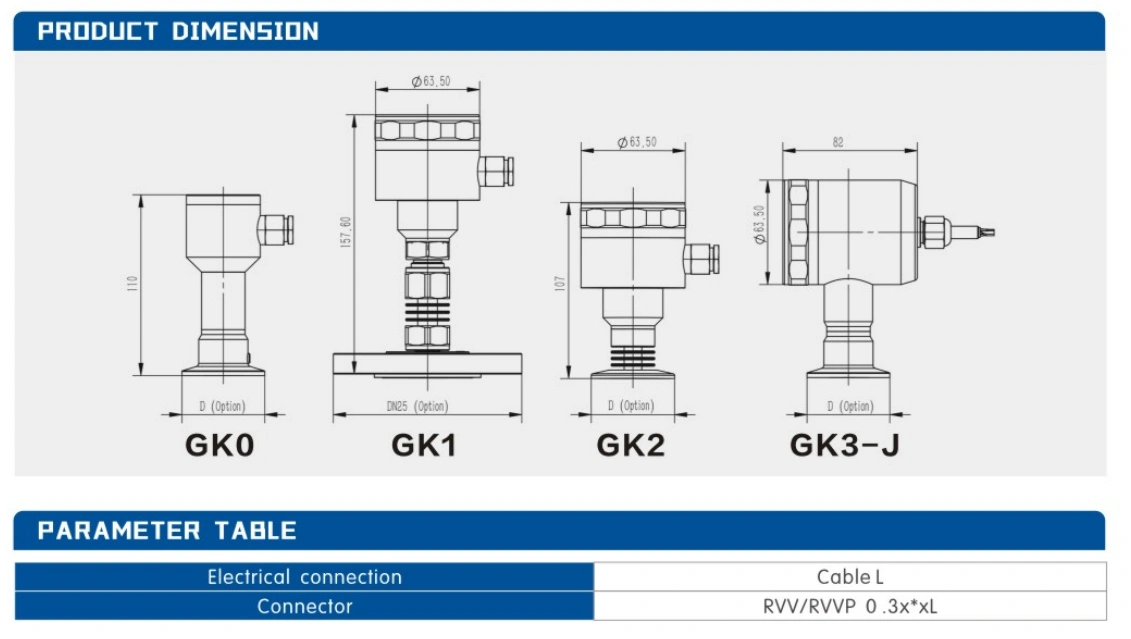

Diaphragm Seal Pressure Transmitter
The diaphragm seal pressure transmitter adopts advanced piezoresistive sensing technology with a built-in anti-interference amplification circuit. It features low temperature drift, high accuracy, stable performance, and strong EMC capability. The transmitter is built with a full stainless steel sealed structure, supports multiple output signals, and includes reverse polarity protection. It provides reliable long-term operation and is widely used in industrial automation, food processing, and chemical applications.
- Measuring medium: gases, liquids, and gas-liquid mixtures compatible with wetted parts
- Pressure range: -100 kPa to 100 MPa (see Table 1)
- Pressure type: GP / AP (optional)
- Accuracy: 0.1% FS / 0.2% FS / 0.5% FS (optional)
- Display: none / LCD / LED (optional)
- Housing material: SUS304 / SUS316
- Power supply: 10–30 VDC
- Output signal: 4–20 mA / RS485 / HART / 0–5 V / 0–10 V / 0.5–4.5 V (optional)
- Protection grade: IP65
- Certification: CE / EMC
- Operating conditions:
Operating temperature: -20°C to +60°C
Storage temperature: -40°C to +80°C
Humidity: 5–100% RH

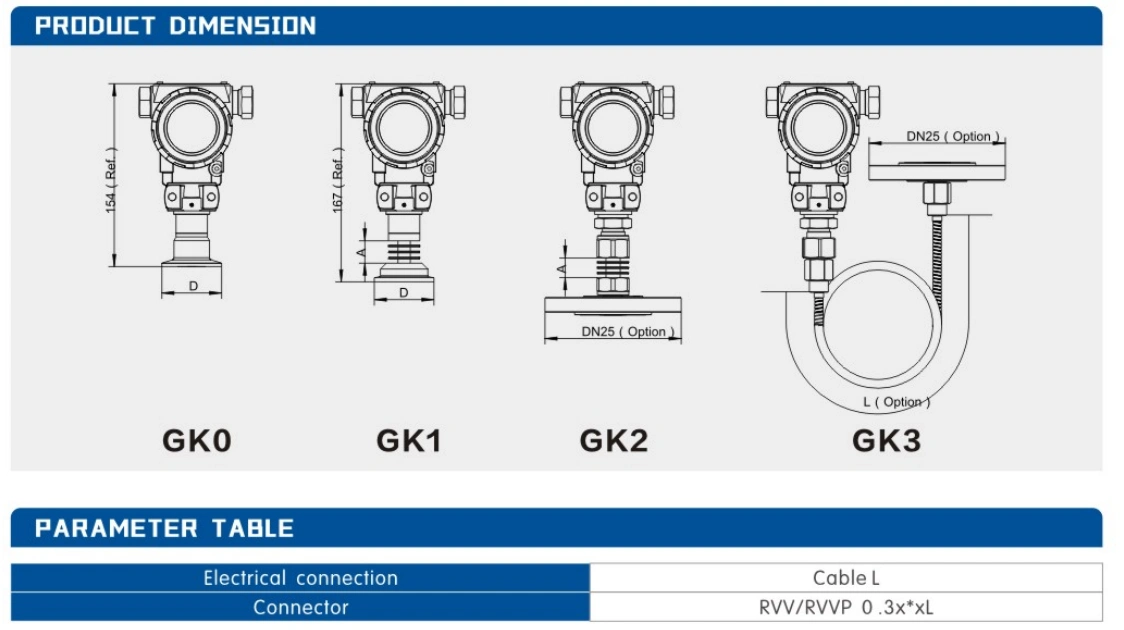

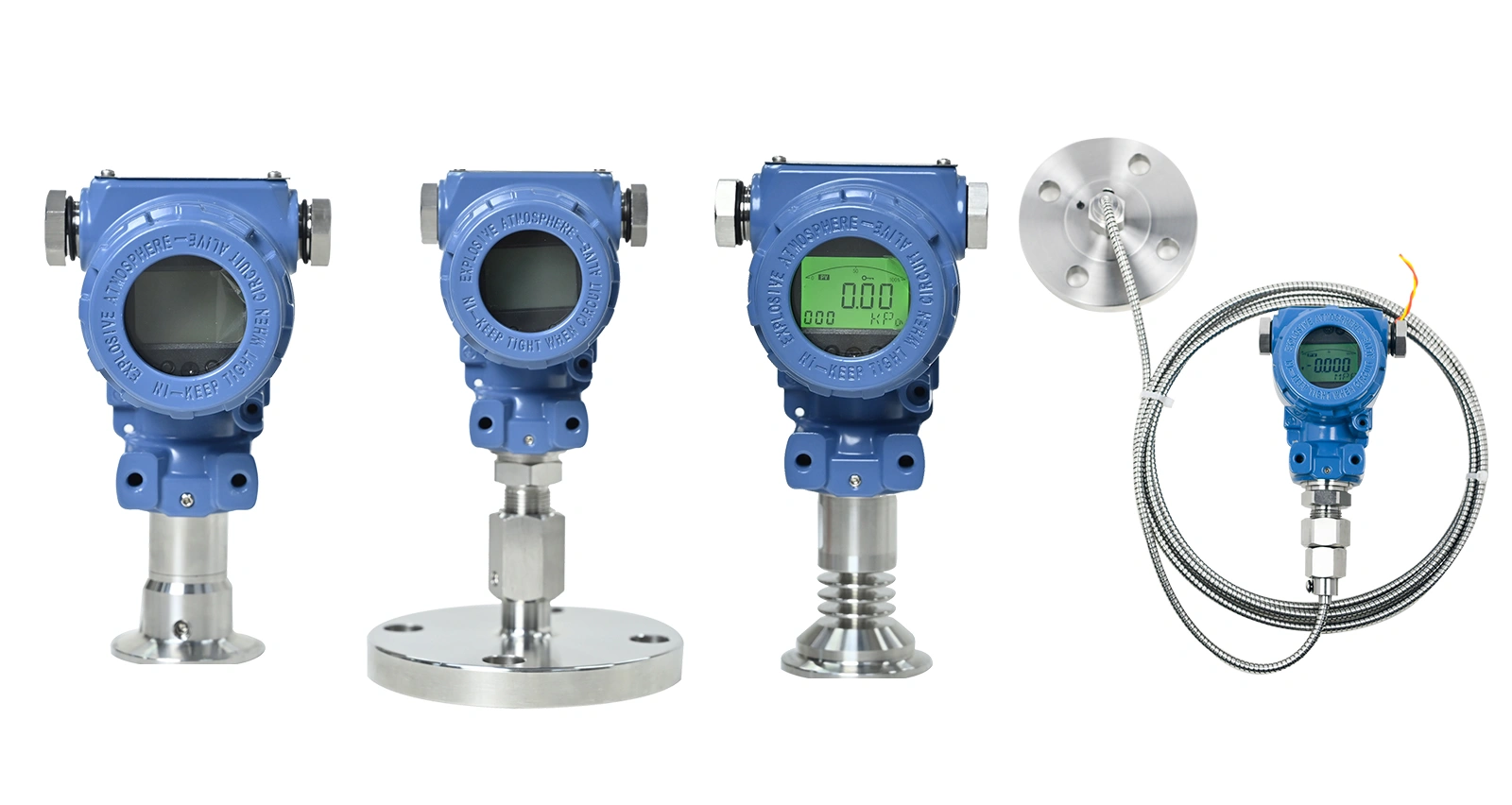

Diaphragm Seal Pressure Transmitter
The diaphragm seal pressure transmitter adopts advanced piezoresistive sensing technology with a built-in anti-interference amplification circuit. It features low temperature drift, high accuracy, stable performance, and strong EMC capability. The transmitter uses a sealed 2088 housing structure, supports multiple output signals, and includes reverse polarity protection. It provides reliable long-term operation and is widely used in industrial automation, food processing, and chemical applications.
- Measuring medium: gases, liquids, and gas-liquid mixtures compatible with wetted parts
- Pressure range: -100 kPa to 100 MPa (see Table 1)
- Pressure type: GP / AP (optional)
- Accuracy: 0.1% FS / 0.2% FS / 0.5% FS (optional)
- Display: LCD / LED (optional)
- Housing material: 2088 ADC12
- Power supply: 10–30 VDC
- Output signal: 4–20 mA / RS485 / HART / 0–5 V / 0–10 V / 0.5–4.5 V (optional)
- Protection grade: IP67
- Certification: CE / EMC
- Operating conditions:
Operating temperature: -20°C to +60°C
Storage temperature: -40°C to +80°C
Humidity: 5–100% RH
- Logo customization: Customer brand logo printing available
- Display: none / LCD / LED
- Pressure types: absolute pressure (AP), differential pressure (DP), gauge pressure (GP), compound pressure (CP)
- Output signal: no output, 4–20mA, 4–20mA + HART, RS485, 4–20mA + RS485, 0–5V, 0–10V
- Case material: 2088 housing, 3051 aluminum alloy, full stainless steel, rod-type stainless steel
- Process connection: 1/8", 1/4", 3/8", 1/2" optional
- Electrical connection: Hirschmann DIN 43650, M12 aviation plug, PG connector, cable outlet
- Accuracy class: 0.1% FS / 0.2% FS / 0.5% FS / 1.0% FS
- Power supply: 10–30V DC
- Pressure range: -100 kPa to 100 MPa (customizable)
