Hydrostatic Level Transmitter
Hydrostatic level transmitters determine liquid level by measuring hydrostatic pressure. They are widely used for level monitoring in industrial processes, water resources management, environmental protection, agriculture, municipal engineering, and the food and pharmaceutical industries.

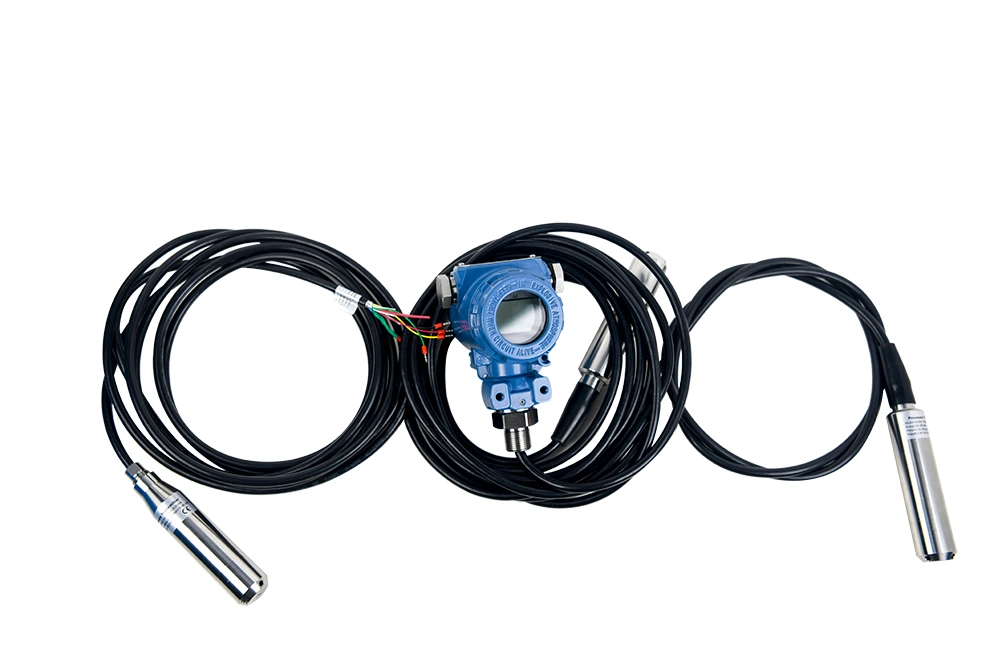

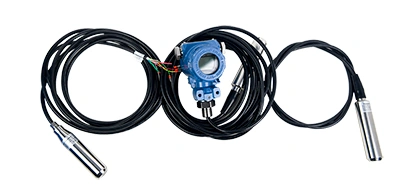

Hydrostatic Level Transmitter
The hydrostatic level transmitter is designed for submersible liquid level measurement in demanding environments. It features high accuracy, a compact design, and reliable long-term stability. The transmitter is equipped with a high-strength vented cable that is resistant to abrasion, oil, acids, and alkalis, making it suitable for a wide range of liquid level monitoring applications. It is widely used for monitoring and managing sewage, rivers, canals, reservoirs, lakes, coastal waters, and hydrological systems.
- Measuring medium: liquids compatible with wetted parts
- Pressure range: 0 kPa to 10 MPa (see Table 1)
- Pressure type: GP
- Accuracy: 0.1% FS / 0.2% FS / 0.5% FS (optional)
- Display: none / LCD (optional)
- Housing material: SUS304 / 2088 (optional)
- Power supply: 10–30 VDC
- Output signal: 4–20 mA / RS485 / HART / 0–5 V / 0–10 V / 0.5–4.5 V (optional)
- Protection grade: IP67
- Certification: CE / EMC
- Operating conditions:
Operating temperature: -20°C to +60°C
Storage temperature: -40°C to +80°C
Humidity: 5–100% RH
- Logo customization: Customer brand logo printing available
- Display: none / LCD / LED
- Pressure types: absolute pressure (AP), differential pressure (DP), gauge pressure (GP), compound pressure (CP)
- Output signal: no output, 4–20mA, 4–20mA + HART, RS485, 4–20mA + RS485, 0–5V, 0–10V
- Case material: 2088 housing, 3051 aluminum alloy, full stainless steel, rod-type stainless steel
- Process connection: 1/8", 1/4", 3/8", 1/2" optional
- Electrical connection: Hirschmann DIN 43650, M12 aviation plug, PG connector, cable outlet
- Accuracy class: 0.1% FS / 0.2% FS / 0.5% FS / 1.0% FS
- Power supply: 10–30V DC
- Pressure range: -100 kPa to 100 MPa (customizable)
