Economical Pressure Transmitter
Economical pressure transmitters with a ceramic sensing element offer a compact design, corrosion resistance, excellent overload capability, and stable performance. They are widely used for pressure monitoring and control in industrial automation, automotive systems, medical equipment, household appliances, HVAC, food and beverage processing, water treatment, agriculture, and laboratory instruments. Their compact size makes them well suited for equipment with limited installation space.

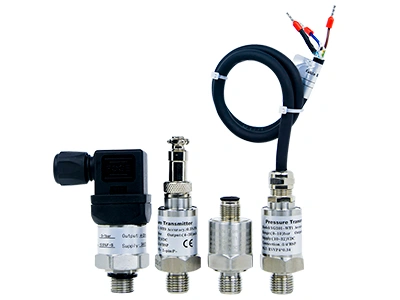

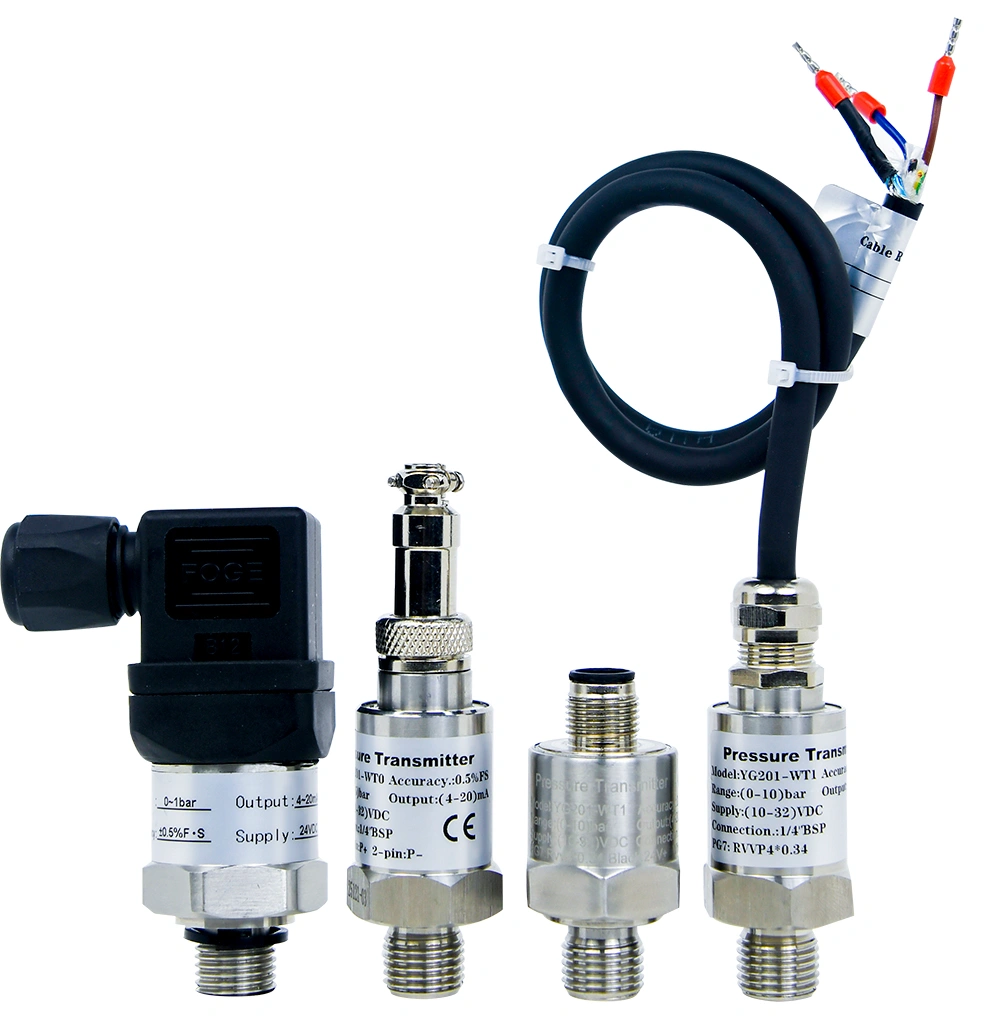

Ceramic Pressure Transmitter
The pressure transmitter adopts an advanced piezoresistive ceramic sensor with a built-in anti-interference amplification circuit. It delivers stable performance and strong EMC capability and complies with CE certification. The transmitter features a sealed stainless steel construction, supports a wide range of electrical connections, provides analog signal output, and includes reverse polarity protection. It offers reliable long-term operation and is an economical solution for industrial automation, constant pressure water supply, refrigeration and HVAC systems, water pressure process monitoring, gas vessel pressure monitoring, coolant pressure monitoring, and air compressors.
- Measuring medium: gases, liquids, and gas-liquid mixtures compatible with wetted parts
- Pressure range: 5 kPa to 50 MPa (see Table 3)
- Pressure type: GP
- Accuracy: 0.5% FS / 1.0% FS (optional)
- Display: none
- Housing material: SUS304
- Power supply: 10–30 VDC
- Output signal: 4–20 mA / 0–5 V / 0–10 V / 0.5–4.5 V (optional)
- Protection grade: IP65
- Certification: CE / EMC
- Operating conditions:
Operating temperature: -40°C to +80°C
Storage temperature: -40°C to +80°C
Humidity: 5–100% RH
