123G Low Pressure Capsule Gauge (2.5")
Product Details
- Accuracy class: ±1.6%, ±2.5%
- Nominal dial size: 2.5" (63mm)
- Pressure range: -1000 mbar to 1000 mbar, customizable within this range
- Process connection: 1/8", 1/4", NPT, BSP, BSPT, M12×1.5 (optional)
- Case material: Stainless steel, crimped ring
- Dial material: Aluminum with custom scale and logo
- Window material: PC (polycarbonate)
- IP protection rating: IP65

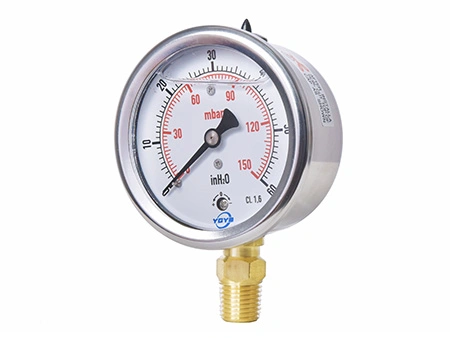

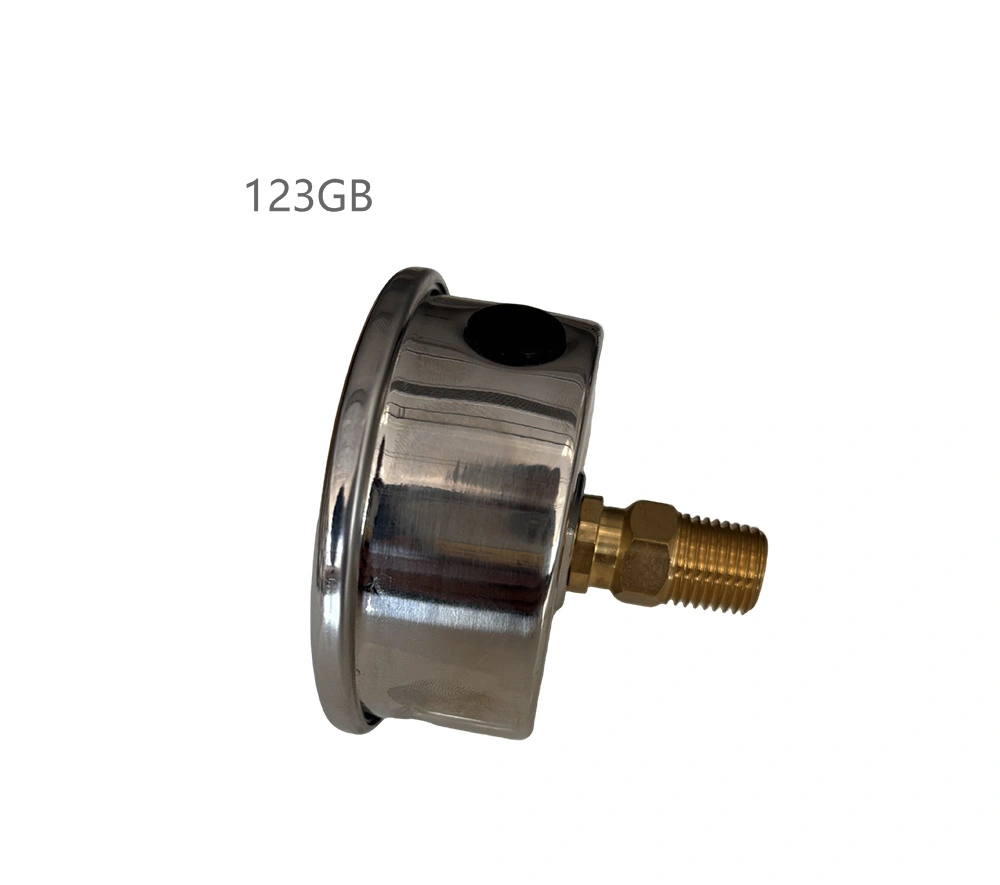

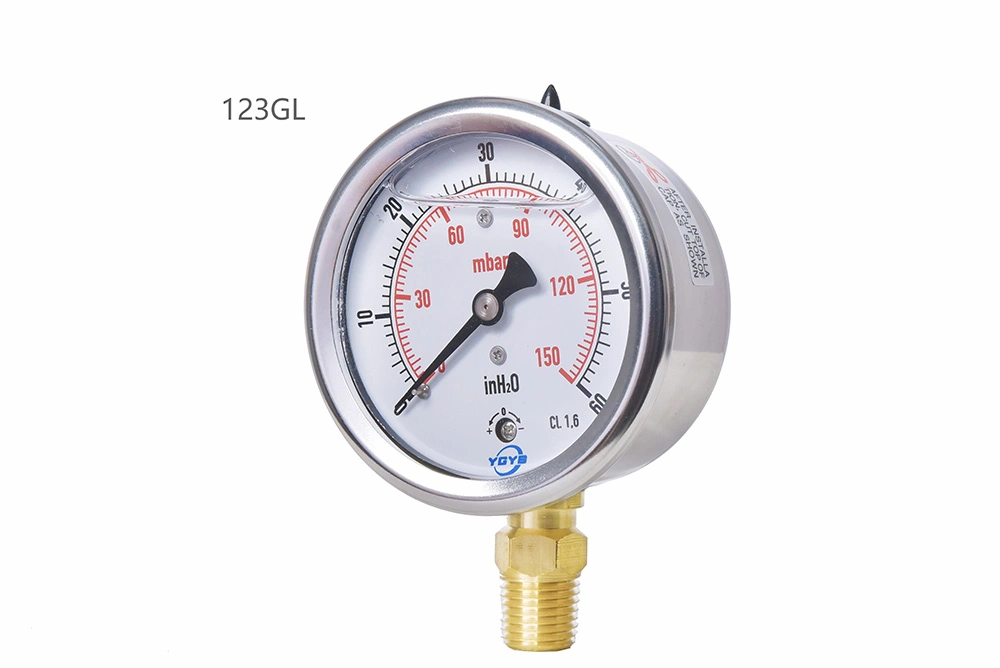

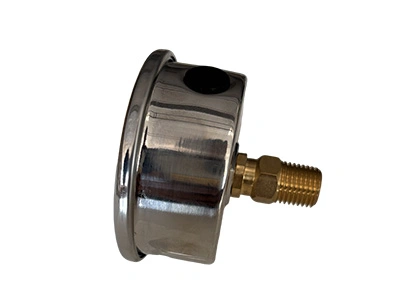

- Mounting: Bottom mount / back mount
Customization
- Logo: custom dial branding & OEM
- Scale: bar / psi, MPa / kg/cm² or kPa / psi
- Pressure range: standard ranges (e.g., 0-1.6 bar) or customized non-standard ranges
- Thread size: 1/8", 1/4", 3/8", 1/2", etc.
- Mounting: bottom mount (radial connection), back mount (axial connection), panel mount (front flange or rear flange)
- Window material: Polycarbonate (PC), tempered glass, acrylic
- Accuracy class: 1.5/1.6/2.5
Applications
Suitable for low-pressure and weakly corrosive gas measurement in gas transmission systems, heating and ventilation systems, chemical and light industrial processes, and low-pressure monitoring in industrial equipment.
Installation Dimensions
