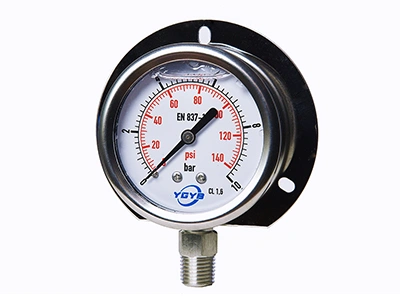

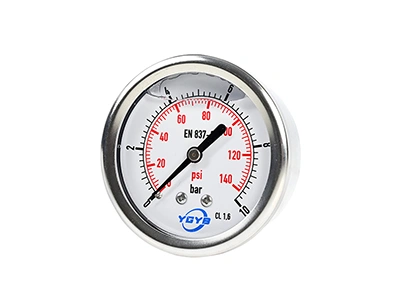

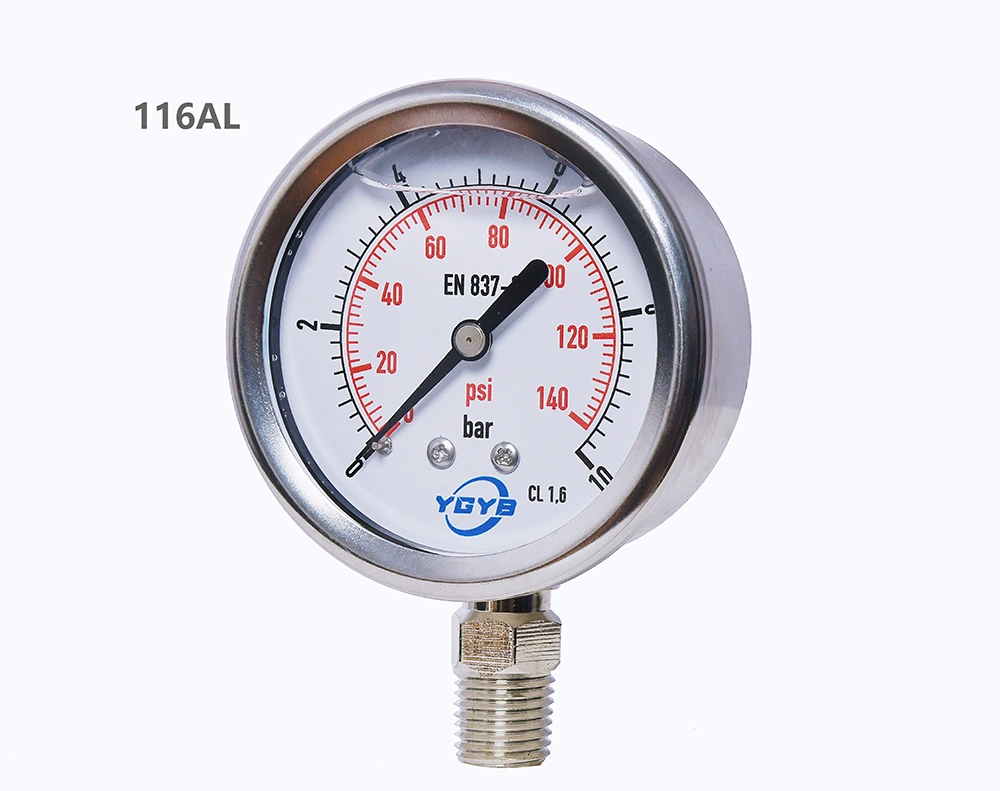

116A Liquid Filled Gauge (1.5"/2"/2.5"/3"/4")
Product Details
- Accuracy class: ±2.5%, ±1.6%
- Nominal dial size: 1.5" (40mm), 2.0" (50mm), 2.5" (63mm), 3" (80mm), 4" (100mm)
- Pressure range: Vacuum to 1000 bar (15000 psi), customizable within this range
- Process connection: 1/8", 1/4", 3/8", 1/2", NPT, BSP, BSPT, M12×1.5, M20×1.5 (optional)
- Filling liquid: Glycerine or silicone oil
- Case material: Polished or matte stainless steel
- Ring material: Stainless steel (crimped ring)
- Window material: Polycarbonate, tempered glass, or safety glass
- IP protection rating: IP65
- Mounting: Bottom mount / back mount
Customization
- Logo: custom dial branding & OEM
- Scale: bar / psi, MPa / kg/cm² or kPa / psi
- Pressure range: standard ranges (e.g., 0-1.6 bar) or customized non-standard ranges
- Thread size: 1/8", 1/4", 3/8", 1/2", etc.

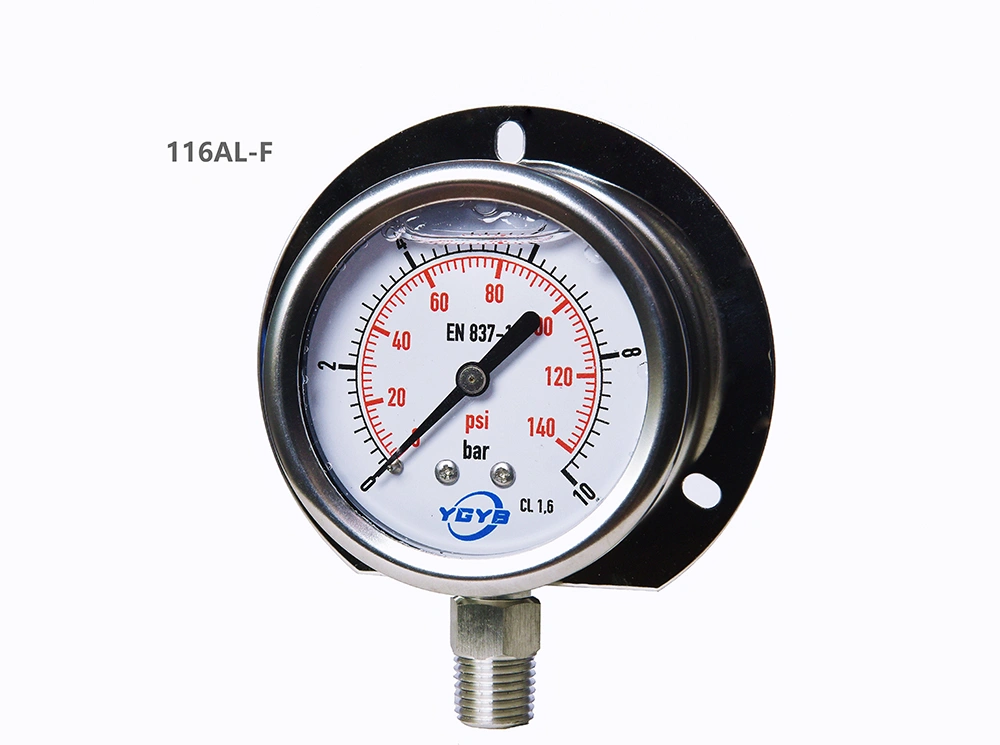

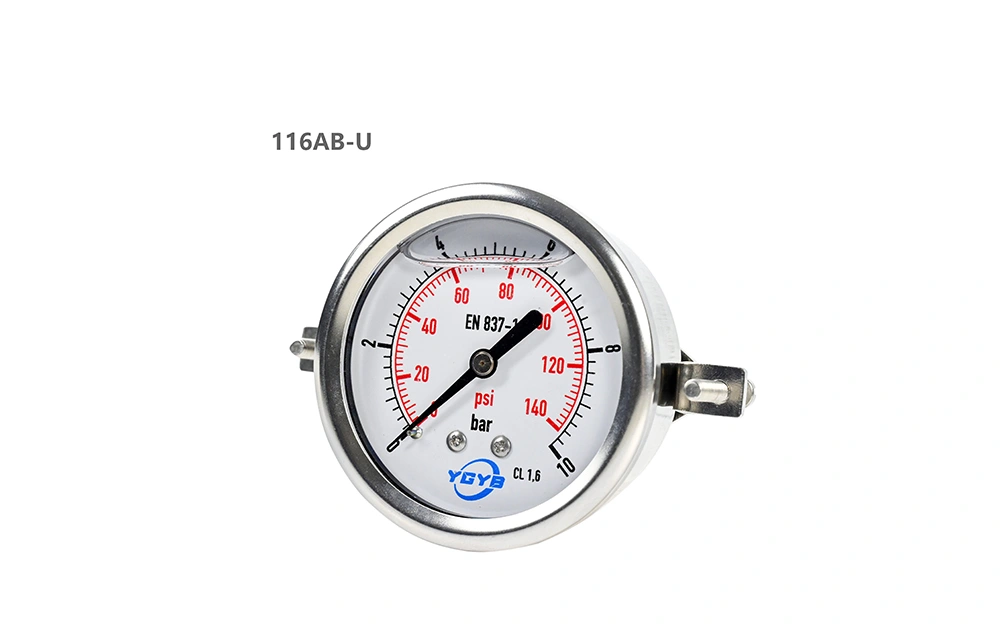

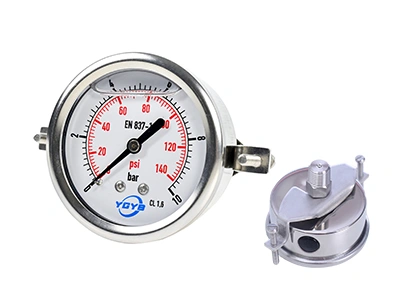

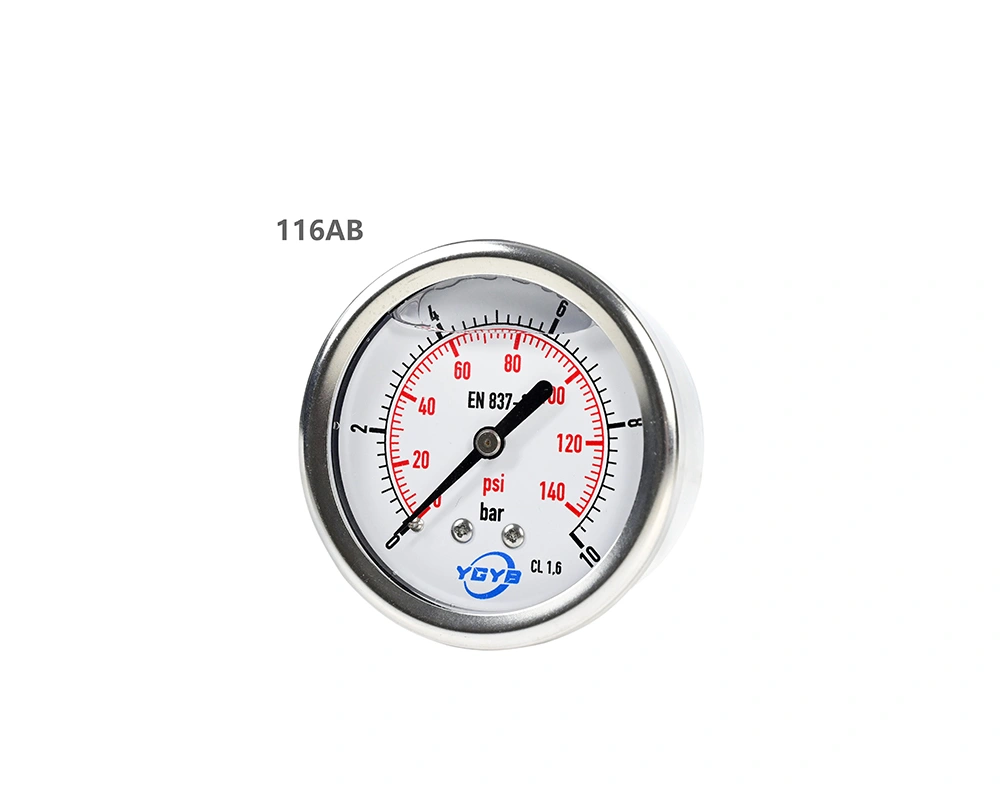

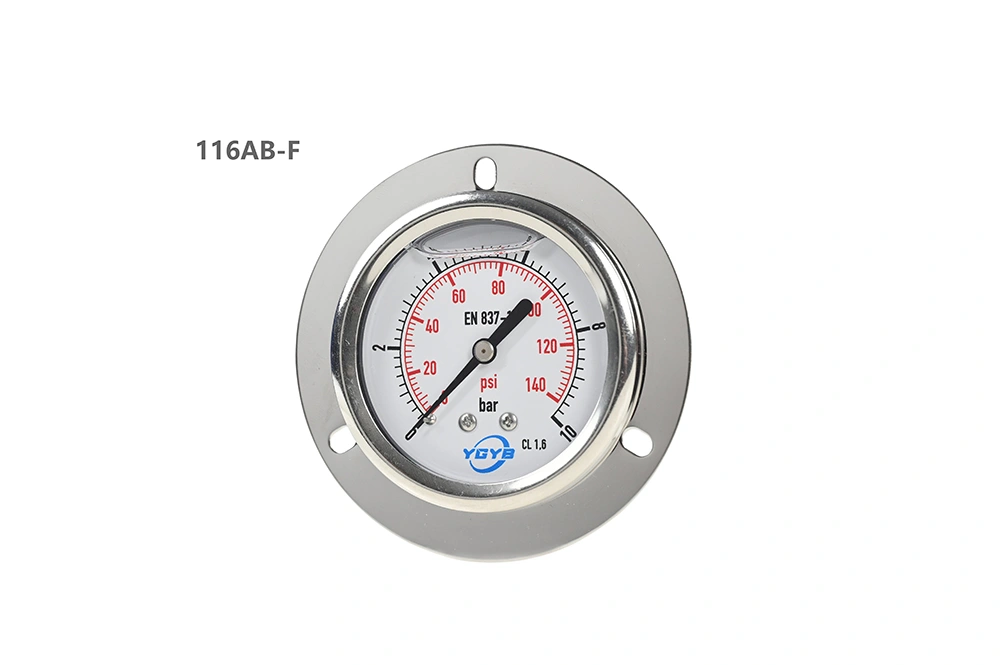

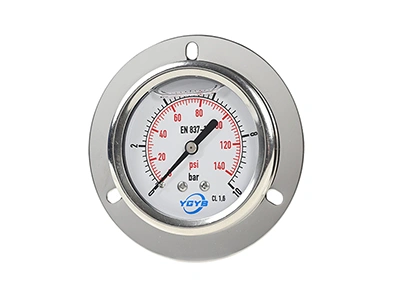

- Mounting: bottom mount (radial connection), back mount (axial connection), panel mount (front flange or rear flange)
- Window material: Polycarbonate (PC), tempered glass, acrylic
- Accuracy class: 1.5/1.6/2.5
Applications
Widely used in petrochemical processing, metallurgy, mining, power generation, construction machinery, marine and offshore equipment, refrigeration, and HVAC systems. The gauge is particularly suitable for industrial applications involving vibration, corrosive media, or harsh operating environments.
Installation Dimensions
