Thermometers

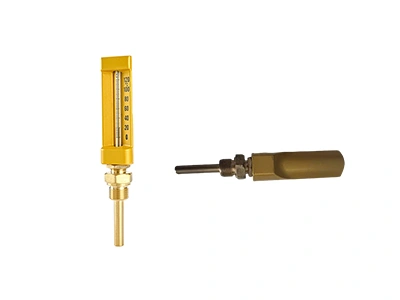

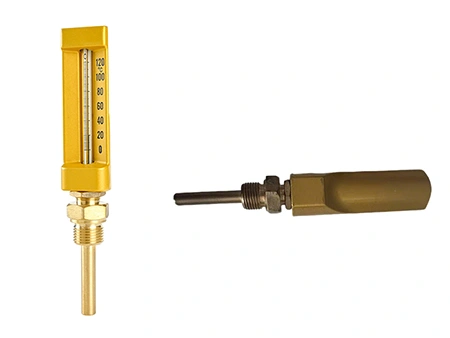

231A Glass Thermometer (110mm/150mm/200mm)

  • Certifications
  • Certifications
  • Certifications
Glass Thermometers

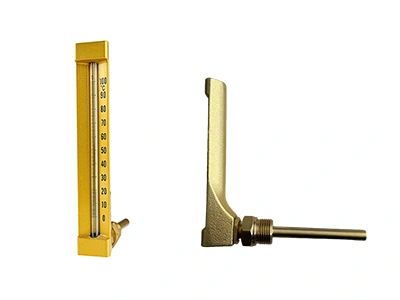

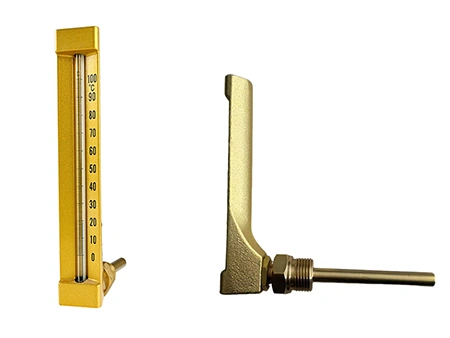

231AL Glass Thermometer (Straight Type)
Glass Thermometers
231AB Glass Thermometer (L-shaped Type)
Product Details
  • Body length: 110 mm, 150 mm, 200 mm
  • Body material: aluminum painted finish
  • Stem length: 30 mm, 50 mm, 63 mm, 100 mm, etc.
  • Stem diameter: 9 mm or 10 mm
  • Stem material: brass
  • Connection size: 1/2” optional
  • Accuracy class: ±1.6% / ±2%
  • Temperature range: -40°C to +200°C
  • Filling: Kerosene
Customization
  • Logo customization: customer brand logo printing on dial
  • Units: °C, °F
  • Range customization: 0–600°C
  • Thread options: 1/8”, 1/4”, 3/8”, 1/2”
  • Mounting type: radial (bottom) / axial (back)
  • Case material: black steel, plated steel, stainless steel
  • Window material: glass or polycarbonate (PC)
  • Accuracy classes: 1.5 / 1.6 / 2.5
  • Stem length range: 50–2000 mm (excluding thread)
  • Stem diameter options: 6 mm / 8 mm / 12 mm
Applications

Capillary thermometers operate on the principle that pressure inside a sealed system changes with temperature. They are mainly used for temperature measurement in corrosive environments and remote temperature monitoring applications.

Installation Dimensions
With over 20+ Years of manufacturing experience, Exact Instrument specializes in OEM/ODM production of pressure gauges, pressure transmitters, and thermometers. Backed by advanced manufacturing, strict quality control, and reliable delivery, we help customers worldwide build dependable industrial measurement solutions.
